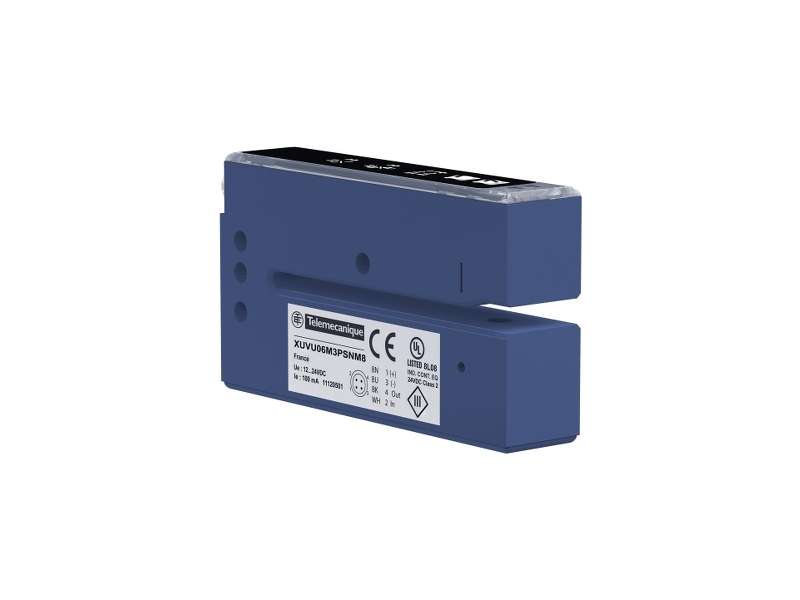

Schneider Electric Ultrazvučni senzor za etikete viljuškasti 60x3 - 12..24 V DC - PNP/NPN NO/NC M8;XUVU06M3KSNM8
Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, PNP/NPN NO/NC connect M8...
VAT-exclusive price: 61.828,00 |
VAT-inclusive price: 74.193,60 |
Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, PNP/NPN NO/NC connect M8
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | Application packaging |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUV |
| sensor design | Fork |
| detection system | Thru beam |
| emission | Ultrasonic |
| type of setting | Without |
| passage width | 3 mm |
| passage depth | 69 mm |
| material | Metal |
| supply circuit type | DC |
| wiring technique | 4-wire |
| discrete output type | PNP and NPN |
| discrete output function | 2 NO/NC programmable |
| electrical connection | 1 male connector M8, 4 pins |
| product specific application | Detection of transparent labels |
| [Sn] nominal sensing distance | 3 mm thru beam |
| setting-up | Numeric potentiometer |
|---|---|
| enclosure material | Zinc alloy |
| lens material | PC |
| accuracy | +/- 0.20 mm at 120 m/min |
| minimum label length | 2 mm |
| minimum distance between labels | 2 mm |
| maximum passing speed of object | 180 m/min |
| type of output signal | Discrete |
| output type | Solid state |
| status LED |
Output state: 1 LED (yellow) Adjustment mode and keypad locking: 1 LED (red) |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…30 V DC |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| switching frequency | <= 1500 Hz |
| maximum voltage drop | <2 V (closed state) |
| maximum delay first up | 30 ms |
| maximum delay response | 0.3 ms |
| maximum delay recovery | 0.3 ms |
| depth | 47 mm |
| height | 92.5 mm |
| width | 18 mm |
| net weight | 0.13 kg |
| product certifications |
CULus CE |
|---|---|
| ambient air temperature for operation | 5…55 °C |
| ambient air temperature for storage | -20…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 7.5 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 15.0 cm |
| Package 2 Height | 15.0 cm |
| Package 2 Weight | 2.588 kg |
| Package 1 Width | 3.5 cm |
| Package 1 Height | 13.0 cm |
| Package 1 Weight | 160.0 g |
| Number of Units in Package 2 | 15 |
| Unit Type of Package 2 | S01 |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
