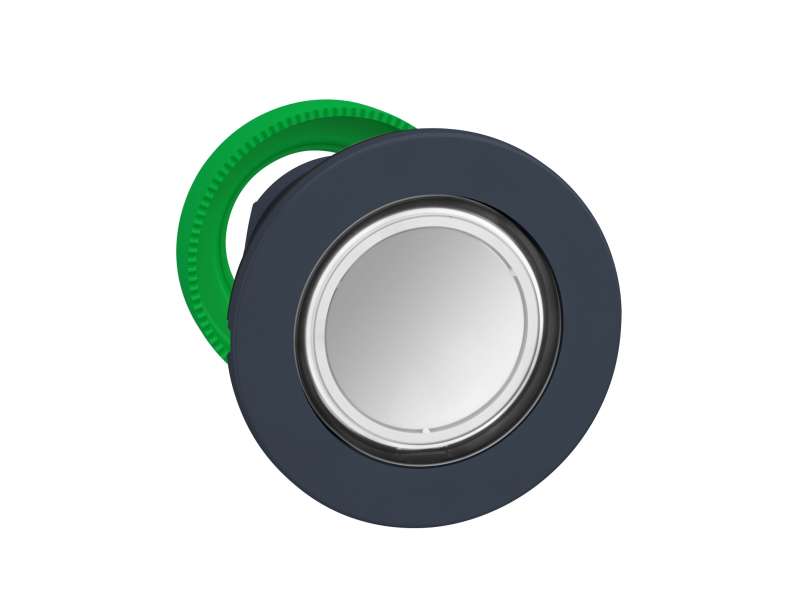

Schneider Electric Ugradni beli poklopci glave tastera za umetanje oznake;ZB5FA18
Flush mounted white flush caps pushbutton head for legend insertion...
VAT-exclusive price: 688,00 |
VAT-inclusive price: 825,60 |
Flush mounted white flush caps pushbutton head for legend insertion
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for illuminated push-button
|
|
| device short name |
ZB5
|
|
| product compatibility |
Integral LED
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
30 mm
|
|
| sale per indivisible quantity |
1
|
|
| head type |
Built-in-flush
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
White flush, unmarked
|
|
| operator additional information |
For insertion of legend
|
| CAD overall width |
37 mm
|
|
|---|---|---|
| CAD overall height |
37 mm
|
|
| CAD overall depth |
30 mm
|
|
| net weight |
0.017 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
10000000 cycles
|
|
| main group |
Illum push-button
|
|
| group of product |
Flush push with inser of legend
|
|
| cap/operator or lens colour |
White
|
|
| marking |
Unmarked
|
|
| electrical composition code |
M1 for <6 contacts using single blocks in front mounting with integral LED
M2 for <6 contacts using single and double blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED MF1 for <2 contacts using single blocks in front mounting with integral LED C4 for <6 contacts using single and double blocks in front mounting C14 for <2 contacts using single blocks in front mounting SF2 for <2 contacts using single blocks in front mounting C3 for <6 contacts using single blocks in front mounting with integral LED |
| protective treatment |
TC
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK03 conforming to EN 50102
|
|
| standards |
CSA C22.2 No 14
EN/IEC 60947-1 EN/IEC 60947-5-4 GB 14048.5 UL 508 EN/IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1 |
|
| product certifications |
GL
DNV UL listed RINA BV CSA LROS (Lloyds register of shipping) |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
22 g
|
|
| Package 1 Height |
5.45 cm
|
|
| Package 1 width |
4.3 cm
|
|
| Package 1 Length |
5.2 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
-
Harmony XB5 ZB5FA18
