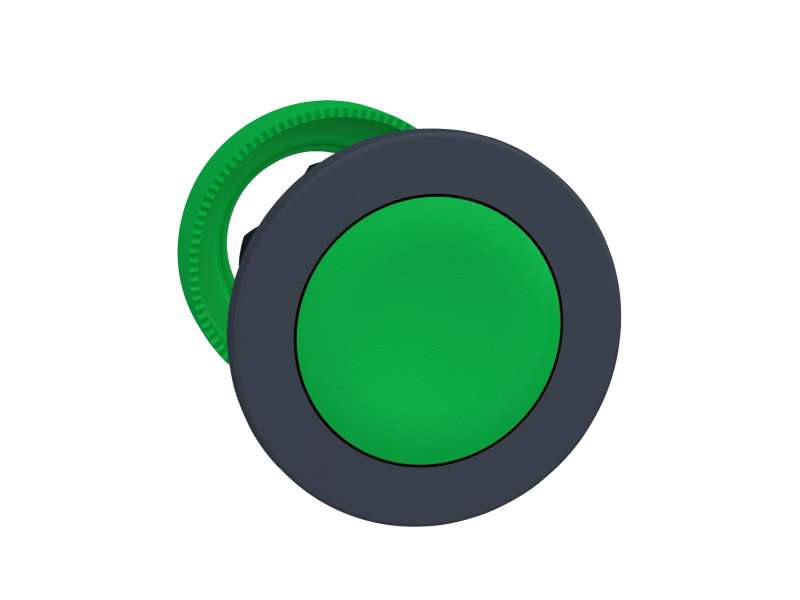

Schneider Electric Ugradna zelena glava tastera;ZB5FA3
Flush mounted push button head, plastic, green, Ø30, spring return, unmarked...
VAT-exclusive price: 458,00 |
VAT-inclusive price: 549,60 |
Flush mounted push button head, plastic, green, Ø30, spring return, unmarked
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for non-illuminated push-button
|
|
| device short name |
ZB5
|
|
| product compatibility |
ZBYF...
ZBZF32 ZBZF33 ZB5AZ |
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
30.5 mm
|
|
| head type |
Built-in-flush
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Green flush, unmarked
|
| CAD overall width |
37 mm
|
|
|---|---|---|
| CAD overall height |
37 mm
|
|
| CAD overall depth |
30 mm
|
|
| net weight |
0.03 kg
|
|
| mechanical durability |
10000000 cycles
|
|
| electrical composition code |
C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K conforming to ISO 20653 Type 13 conforming to UL 50 E Type 12 conforming to UL 50 E Type 4 conforming to UL 50 E Type 4X conforming to UL 50 E |
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
UL 508
EN/IEC 60947-5-4 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 JIS C8201-1 |
|
| product certifications |
BV
UL listed CSA RINA LROS (Lloyds register of shipping) GL DNV |
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 |
|
| vibration resistance |
5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
30 g
|
|
| Package 1 Height |
6.3 cm
|
|
| Package 1 width |
5.4 cm
|
|
| Package 1 Length |
4.6 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
|
-
Harmony XB5 ZB5FA3
