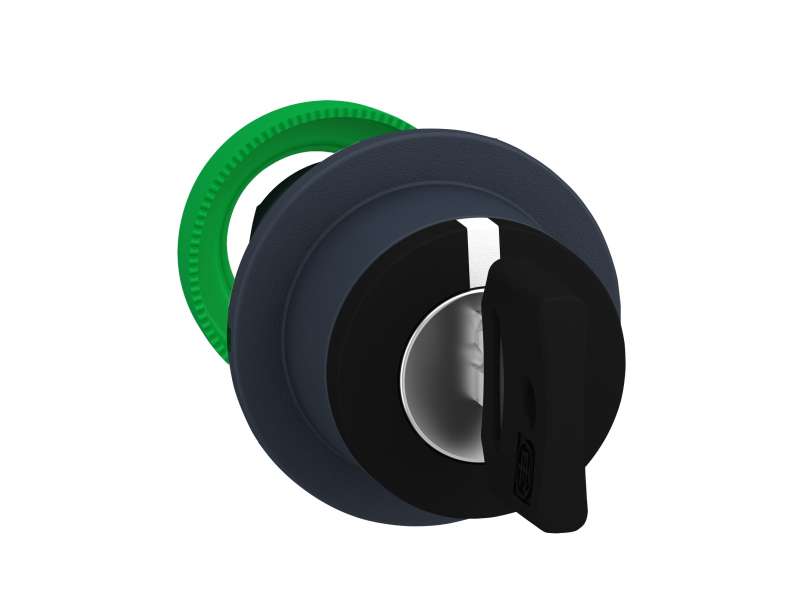

Schneider Electric Ugradna glava izbornog prekidača ključ 8D1 3 pozicije povratak sleva na centar;ZB5FG07D
Flush mounted selector switch head key 8D1 3 pos return left to center...
VAT-exclusive price: 5.272,00 |
VAT-inclusive price: 6.326,40 |
Flush mounted selector switch head key 8D1 3 pos return left to center
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for key selector switch
|
|
| device short name |
ZB5
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
30 mm
|
|
| head type |
Built-in-flush
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
Left to centre spring return
|
|
| operator profile |
Black key switch
|
|
| operator position information |
3 positions +/- 45°
|
|
| type of keylock |
Dom 8D1
|
|
| key withdrawal position |
Right and center
|
| CAD overall width |
37 mm
|
|
|---|---|---|
| CAD overall height |
37 mm
|
|
| CAD overall depth |
72 mm
|
|
| net weight |
0.069 kg
|
|
| mechanical durability |
1000000 cycles
|
|
| electrical composition code |
C4 for <6 contacts using single and double blocks in front mounting
C5 for <5 contacts using single blocks in front mounting C6 for <5 contacts using single and double blocks in front mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C3 for <6 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting |
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-4
EN/IEC 60947-5-1 JIS C8201-5-1 UL 508 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-1 |
|
| product certifications |
UL listed
RINA DNV CSA BV LROS (Lloyds register of shipping) GL |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
63 g
|
|
| Package 1 Height |
8.6 cm
|
|
| Package 1 width |
4.3 cm
|
|
| Package 1 Length |
5.2 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
-
Harmony XB5 ZB5FG07D
