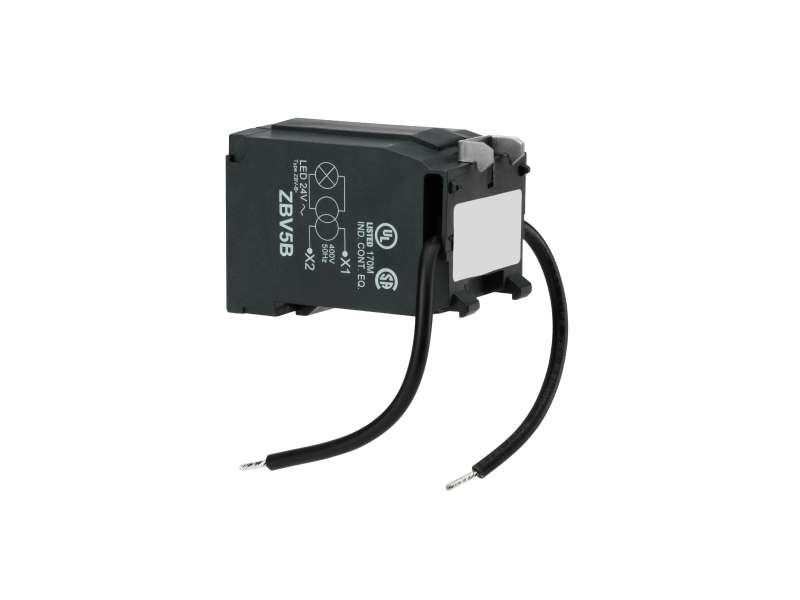

Schneider Electric Transformatorski blok za svetlosni blok integrisani LED - 400V;ZBV5B
Transformer block, for light block with integral LED, 400 V...
VAT-exclusive price: 3.090,00 |
VAT-inclusive price: 3.708,00 |
Transformer block, for light block with integral LED, 400 V
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Transformer block
|
|
| product compatibility |
Light block with integral LED 24 V AC
|
|
| device short name |
ZBV
|
|
| sale per indivisible quantity |
1
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
|
| [Us] rated supply voltage |
400 V AC at 60 Hz
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
33.6 mm
|
|
| CAD overall depth |
46.6 mm
|
|
| net weight |
0.09 kg
|
|
| electrical shock protection class |
Class I conforming to IEC 60536
|
|
| supply voltage limits |
407…423 V
|
|
| surge withstand |
1 kV conforming to IEC 61000-4-5
|
|
| electrical composition code |
M6
P2 |
|
| device presentation |
Basic element
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| standards |
EN/IEC 60947-5-4
CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-5 UL 508 JIS C 4520 |
|
| product certifications |
UL listed
LROS (Lloyds register of shipping) BV GL CSA RINA DNV |
|
| vibration resistance |
2 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
|
| resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
|
| resistance to electrostatic discharge |
6 kV in contact conforming to IEC 61000-4-2
8 kV in free air conforming to IEC 61000-4-2 |
|
| electromagnetic emission |
Class B conforming to IEC 55011
|
| Package 1 Weight |
0.090 kg
|
|
|---|---|---|
| Package 1 Height |
0.570 dm
|
|
| Package 1 width |
0.440 dm
|
|
| Package 1 Length |
0.520 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
Harmony XB4 ZBV5B
