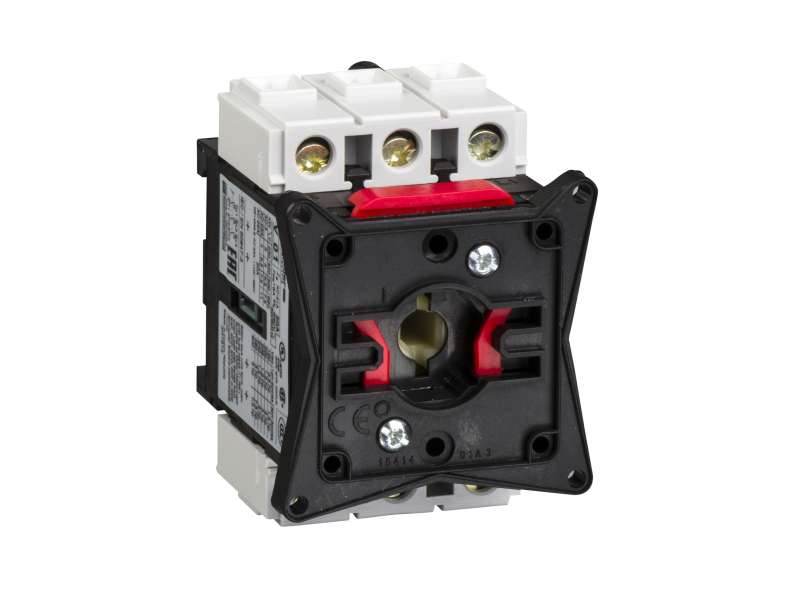

Name: Schneider Electric TeSys VARIO - telo rastavljača - 3P - 25 A;V0
Brand: Schneider Electric
SKU: V0.
Price: 4518.73 RSD
Availability: OutOfStock

Schneider Electric TeSys VARIO - telo rastavljača - 3P - 25 A;V0

TeSys VARIO - Switch body for switch-disconnector - 3 poles - 25 A...

Brand: Schneider Electric
Product Code: V0.
Availability: Check availability

VAT-exclusive price: 3.765,61

VAT-inclusive price: 4.518,73

Qnt:

TeSys VARIO - Switch body for switch-disconnector - 3 poles - 25 A

Main
range	TeSys
product name	TeSys VARIO
device short name	V
product or component type	Switch body
performance level	High performance
poles description	3P
contacts type and composition	3 NO
network type	AC DC
network frequency	50/60 Hz
suitability for isolation	Yes

Complementary
mounting support	Symmetrical rail Plate
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ith] conventional free air thermal current	25 A
[Ithe] conventional enclosed thermal current	20 A
[Ie] rated operational current	14.5 A AC-23 Ue: 400 V
rated operational power in W	11 kW at 500 V (AC-23A) 11 kW at 690 V (AC-3) 15 kW at 690 V (AC-23A) 4 kW at 230...240 V (AC-3) 5.5 kW at 400...415 V (AC-3) 7.5 kW at 500 V (AC-3) 5.5 kW at 230...240 V (AC-23A) 7.5 kW at 400...415 V (AC-23A)
intermittent duty class	30
Making capacity ( I Rms)	250 A at 400 V AC-21A 250 A at 400 V AC-22A 250 A at 400 V AC-23A
[Icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current	300 A at 400 V duration: 1 s
rated conditional short-circuit current	10 kA at 400 V - associated fuse 25 A aM 10 kA at 400 V - associated fuse 25 A gG
breaking capacity	200 A at 400 V (AC-21A) 200 A at 400 V (AC-22A) 200 A at 400 V (AC-23A)
mechanical durability	100000 cycles
electrical durability	100000 cycles AC-21 30000 cycles DC-1...5
connections - terminals	Power circuit: screw clamp terminals10 mm² - solid Power circuit: screw clamp terminals6 mm² - flexible - with cable end
tightening torque	Power circuit: 2.1 N.m - on screw clamp terminals
height	74 mm
width	55 mm
depth	60 mm
net weight	0.2 kg

Environment
standards	IEC 60947-3
product certifications	GL UL CSA
protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
mechanical robustness	Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
ambient air temperature for operation	-20…50 °C
fire resistance	960 °C conforming to IEC 60695-2-1
