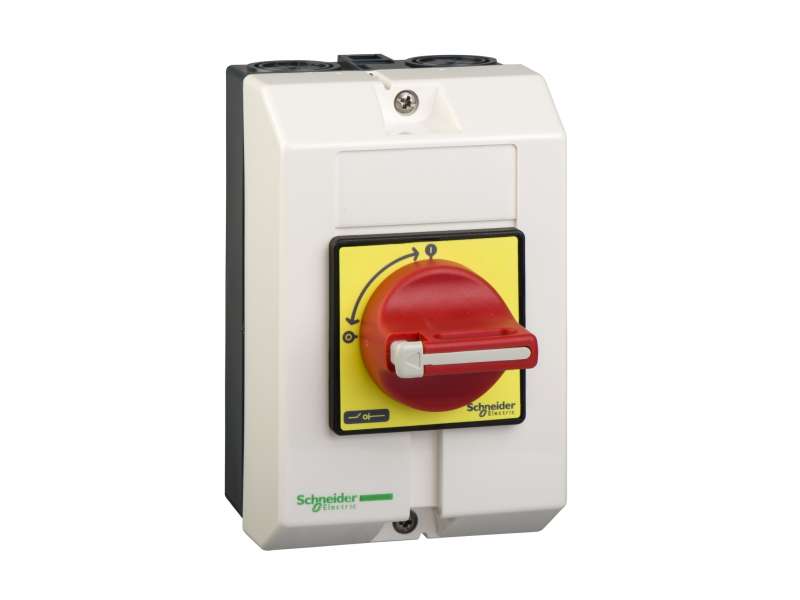

Schneider Electric TeSys VARIO - rastavljač za nužno isključenje u kućištu -25 A;VCF1GE
TeSys Vario enclosed, emergency switch disconnector, 25A, IP65...
VAT-exclusive price: 8.341,00 |
VAT-inclusive price: 10.009,20 |
TeSys Vario enclosed, emergency switch disconnector, 25A, IP65
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys VARIO
|
|
| device short name |
VCF
|
|
| product or component type |
Enclosed emergency stop switch disconnector
|
|
| performance level |
High performance
|
|
| poles description |
3P
|
|
| control type |
Rotary handle
|
|
| handle colour |
Red
|
|
| handle front plate colour |
Yellow
|
|
| rotary handle padlocking |
1 to 3 padlocks 4…8 mm
|
| marking |
0 - 1
|
|
|---|---|---|
| [Ue] rated operational voltage |
690 V AC
|
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
| [Ithe] conventional enclosed thermal current |
25 A
|
|
| [Ie] rated operational current |
21.8 A (AC-23A) at 400 V
|
|
| rated operational power in W |
11 kW at 400 V (AC-23)
7.5 kW at 400 V (AC-3) |
|
| intermittent duty class |
30
|
|
| Making capacity ( I rms) |
320 A at 400 V AC-21A
320 A at 400 V AC-22A 320 A at 400 V AC-23A |
|
| [Icm] rated short-circuit making capacity |
1 kA at 400 V at Ipeak
|
|
| [Icw] rated short-time withstand Rms current |
384 A at 400 V duration: 1 s
|
|
| rated conditional short-circuit current |
10 kA at 400 V - associated fuse 35 A aM
10 kA at 400 V - associated fuse 35 A gG |
|
| breaking capacity |
250 A at 400 V (AC-21A)
250 A at 400 V (AC-22A) 250 A at 400 V (AC-23A) |
|
| mechanical durability |
100000 cycles
|
|
| electrical durability |
100000 cycles AC-21
30000 cycles DC-1...5 |
|
| environmental characteristic |
Standard environment
|
|
| suitability for isolation |
Yes
|
|
| connections - terminals |
Screw clamp terminals10 mm² - solid
Screw clamp terminals6 mm² - flexible - with cable end |
|
| tightening torque |
2.1 N.m - on screw clamp terminals
|
|
| fire resistance |
960 °C conforming to IEC 60595-2-1
|
|
| handle front plate dimension |
60 x 60 mm
|
|
| height |
146 mm
|
|
| width |
90 mm
|
|
| depth |
131 mm
|
|
| net weight |
0.5 kg
|
| standards |
IEC 60204
IEC 60947-4-1 |
|
|---|---|---|
| protective treatment |
TC
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| mechanical robustness |
Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
|
| ambient air temperature for operation |
-20…50 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
471 g
|
|
| Package 1 Height |
11 cm
|
|
-
TeSys Vario Mini-Vario VCF1GE
