Name: Schneider Electric TeSys VARIO - rastavljač u kućištu - 20 A;VBF0GE
Brand: Schneider Electric
SKU: VBF0GE
Price: 9139.20 RSD
Availability: OutOfStock

Schneider Electric TeSys VARIO - rastavljač u kućištu - 20 A;VBF0GE

TeSys Vario enclosed, main switch disconnector, 20A, IP65...

Brand: Schneider Electric
Product Code: VBF0GE
Availability: Check availability

VAT-exclusive price: 7.616,00

VAT-inclusive price: 9.139,20

Qnt:

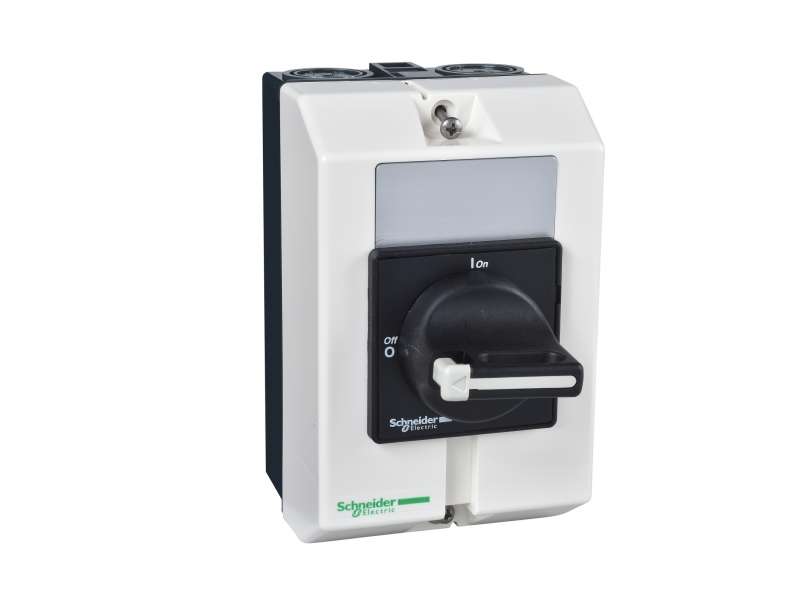

TeSys Vario enclosed, main switch disconnector, 20A, IP65

Main
range	TeSys
product name	TeSys VARIO
device short name	VBF
device application	Preventive maintenance
product or component type	Enclosed switch disconnector
performance level	High performance
poles description	3P
control type	Rotary handle
handle colour	Black
handle front plate colour	Black
rotary handle padlocking	1 to 3 padlocks 4…8 mm

Complementary
marking	0 - 1
[Ue] rated operational voltage	690 V AC
[Uimp] rated impulse withstand voltage	8 kV
[Ithe] conventional enclosed thermal current	20 A
[Ie] rated operational current	14.5 A (AC-23A) at 400 V
rated operational power in W	7.5 kW at 400 V (AC-23) 5.5 kW at 400 V (AC-3)
intermittent duty class	30
Making capacity ( I rms)	250 A at 400 V AC-21A 250 A at 400 V AC-22A 250 A at 400 V AC-23A
[Icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current	300 A at 400 V duration: 1 s
rated conditional short-circuit current	10 kA at 400 V - associated fuse 25 A aM 10 kA at 400 V - associated fuse 25 A gG
breaking capacity	200 A at 400 V (AC-21A) 200 A at 400 V (AC-22A) 200 A at 400 V (AC-23A)
mechanical durability	100000 cycles
electrical durability	100000 cycles AC-21 30000 cycles DC-1...5
environmental characteristic	Standard environment
suitability for isolation	Yes
connections - terminals	Screw clamp terminals10 mm² - solid Screw clamp terminals6 mm² - flexible - with cable end
tightening torque	2.1 N.m - on screw clamp terminals
fire resistance	960 °C conforming to IEC 60595-2-1
handle front plate dimension	60 x 60 mm
height	146 mm
width	90 mm
depth	131 mm
net weight	0.5 kg

Environment
standards	IEC 60204 IEC 60947-4-1
protective treatment	TC
IP degree of protection	IP65 conforming to IEC 60529
mechanical robustness	Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
ambient air temperature for operation	-20…50 °C
