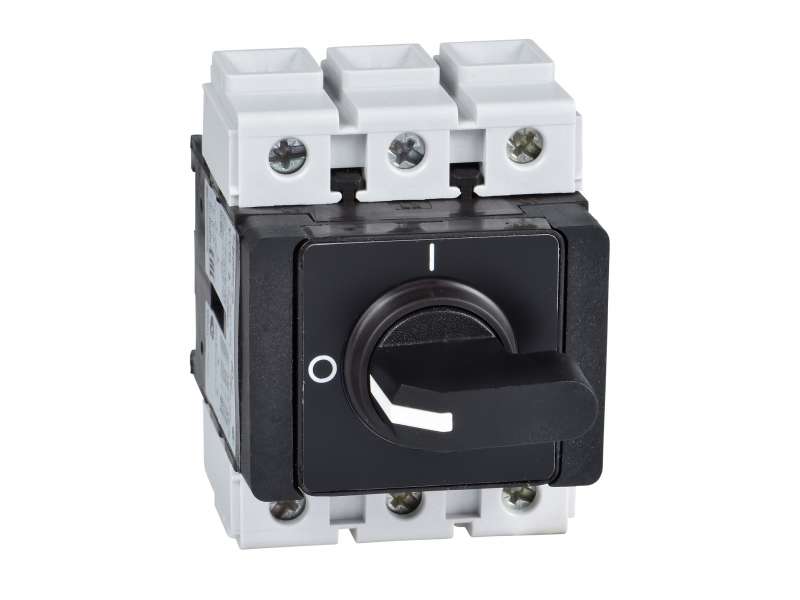

Name: Schneider Electric TeSys Vario - rastavljač - 32 A - montaža na montažnu ploču ili šinu ; VVD1
Brand: Schneider Electric
SKU: VVD1
Price: 6103.20 RSD
Availability: OutOfStock

Schneider Electric TeSys Vario - rastavljač - 32 A - montaža na montažnu ploču ili šinu ; VVD1

TeSys Vario - switch disconnector - 32 A - back of enclosure...

Brand: Schneider Electric
Product Code: VVD1
Availability: Check availability

VAT-exclusive price: 5.086,00

VAT-inclusive price: 6.103,20

Qnt:

TeSys Vario - switch disconnector - 32 A - back of enclosure

Main
range	TeSys
product name	TeSys VARIO
device short name	VVD
device application	Preventive maintenance
product or component type	Switch disconnector
performance level	High performance
poles description	3P
contacts type and composition	3 NO
network type	DC AC
control type	Rotary handle
rotary handle mounting style	Direct
handle colour	Black
handle front plate colour	Black
suitability for isolation	Yes

Complementary
rotary handle padlocking	Without
marking	0 - 1
mounting support	Switch: symmetrical rail Switch: plate
fixing mode	By clips for switch By screws for switch
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ith] conventional free air thermal current	32 A
[Ithe] conventional enclosed thermal current	25 A
[Ie] rated operational current	21.8 A AC-23 Ue: 400 V
rated operational power in W	11 kW at 500 V (AC-23A) 15 kW at 690 V (AC-23A) 7.5 kW at 500 V (AC-3) 7.5 kW at 690 V (AC-3) 1.5 kW at 230...240 V (AC-3) 5.5 kW at 230...240 V (AC-23A) 11 kW at 400...415 V (AC-23A) 7.5 kW at 400...415 V (AC-3)
intermittent duty class	30
Making capacity ( I Rms)	320 A at 400 V AC-21A 320 A at 400 V AC-22A 320 A at 400 V AC-23A
[Icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current	384 A at 400 V duration: 1 s
rated conditional short-circuit current	10 kA at 400 V - associated fuse 35 A aM 10 kA at 400 V - associated fuse 35 A gG
breaking capacity	250 A at 400 V (AC-21A) 250 A at 400 V (AC-22A) 250 A at 400 V (AC-23A)
device composition	Handle Switch
mechanical durability	100000 cycles
electrical durability	100000 cycles AC-21 30000 cycles DC-1...5
connections - terminals	Power circuit: screw clamp terminals10 mm² - solid Power circuit: screw clamp terminals6 mm² - flexible - with cable end
tightening torque	Power circuit: 2.1 N.m - on screw clamp terminals
handle front plate dimension	45 x 45 mm
height	74 mm
width	55 mm
depth	106 mm
net weight	0.25 kg

Environment
standards	IEC 60947-3
product certifications	UL GL CSA
protective treatment	TC
IP degree of protection	IP65 IP65 conforming to IEC 60529
mechanical robustness	Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
ambient air temperature for operation	-20…50 °C
fire resistance	960 °C conforming to IEC 60695-2-1

Packing Units
Package 1 Weight	186 g
Package 2 Weight	936 g

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
PVC free	Yes
Halogen content performance	Halogen free product
