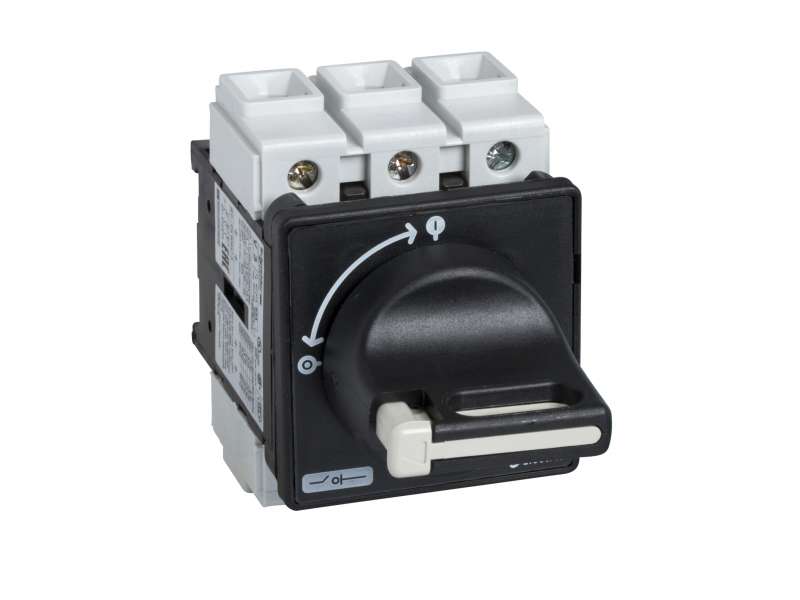

Name: Schneider Electric TeSys Vario - rastavljač - 25 A - montaža na vrata;VBF0
Brand: Schneider Electric
SKU: VBF0
Price: 6228.00 RSD
Availability: OutOfStock

Schneider Electric TeSys Vario - rastavljač - 25 A - montaža na vrata;VBF0

TeSys Vario - switch disconnector - 25 A - on door...

Brand: Schneider Electric
Product Code: VBF0
Availability: Check availability

VAT-exclusive price: 5.190,00

VAT-inclusive price: 6.228,00

Qnt:

TeSys Vario - switch disconnector - 25 A - on door

Main
range	TeSys
product name	TeSys VARIO
device short name	VBF
device application	Preventive maintenance
product or component type	Switch disconnector
performance level	High performance
poles description	3P
contacts type and composition	3 NO
network type	DC AC
control type	Rotary handle
rotary handle mounting style	Direct
handle colour	Black
handle front plate colour	Black
suitability for isolation	Yes

Complementary
rotary handle padlocking	1 to 3 padlocks 4…8 mm
marking	0 - 1
mounting support	Handle: door Switch: door
fixing mode	By 4 screws for handle
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ith] conventional free air thermal current	25 A
[Ithe] conventional enclosed thermal current	20 A
[Ie] rated operational current	14.5 A AC-23 Ue: 400 V
rated operational power in W	11 kW at 500 V (AC-23A) 11 kW at 690 V (AC-3) 15 kW at 690 V (AC-23A) 4 kW at 230...240 V (AC-3) 5.5 kW at 400...415 V (AC-3) 7.5 kW at 500 V (AC-3) 5.5 kW at 230...240 V (AC-23A) 7.5 kW at 400...415 V (AC-23A)
intermittent duty class	30
Making capacity ( I Rms)	250 A at 400 V AC-21A 250 A at 400 V AC-22A 250 A at 400 V AC-23A
[Icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current	300 A at 400 V duration: 1 s
rated conditional short-circuit current	10 kA at 400 V - associated fuse 25 A aM 10 kA at 400 V - associated fuse 25 A gG
breaking capacity	200 A at 400 V (AC-21A) 200 A at 400 V (AC-22A) 200 A at 400 V (AC-23A)
device composition	Handle Switch
mechanical durability	100000 cycles
electrical durability	100000 cycles AC-21 30000 cycles DC-1...5
connections - terminals	Power circuit: screw clamp terminals10 mm² - solid Power circuit: screw clamp terminals6 mm² - flexible - with cable end
tightening torque	Power circuit: 2.1 N.m - on screw clamp terminals
handle front plate dimension	60 x 60 mm
height	74 mm
width	60 mm
net weight	0.25 kg

Environment
standards	IEC 60947-3
product certifications	CSA UL CCC GL
protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529 IP65
mechanical robustness
