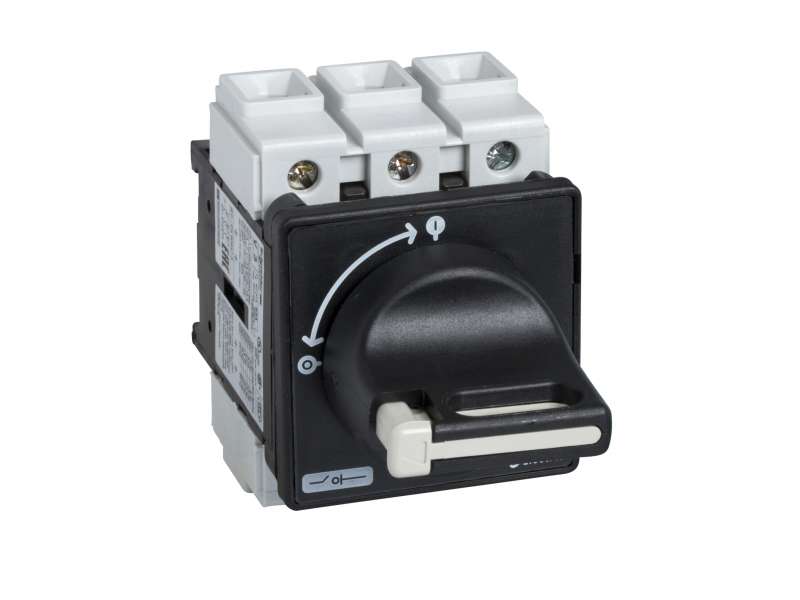

Name: Schneider Electric TeSys Vario - rastavljač - 12 A - montaža na vrata;VBF02
Brand: Schneider Electric
SKU: VBF02
Price: 4530.00 RSD
Availability: OutOfStock

Schneider Electric TeSys Vario - rastavljač - 12 A - montaža na vrata;VBF02

TeSys Vario - switch disconnector - 12 A - on door...

Brand: Schneider Electric
Product Code: VBF02
Availability: Check availability

VAT-exclusive price: 3.775,00

VAT-inclusive price: 4.530,00

Qnt:

TeSys Vario - switch disconnector - 12 A - on door

Main
range	TeSys
product name	TeSys VARIO
device short name	VBF
device application	Preventive maintenance
product or component type	Switch disconnector
performance level	High performance
poles description	3P
contacts type and composition	3 NO
network type	DC AC
control type	Rotary handle
rotary handle mounting style	Direct
handle colour	Black
handle front plate colour	Black
suitability for isolation	Yes

Complementary
rotary handle padlocking	1 to 3 padlocks 4…8 mm
marking	0 - 1
mounting support	Handle: door Switch: door
fixing mode	By 4 screws for handle
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ith] conventional free air thermal current	12 A
[Ithe] conventional enclosed thermal current	10 A
[Ie] rated operational current	8.1 A AC-23 Ue: 400 V
rated operational power in W	3 kW at 400...415 V (AC-3) 4 kW at 500 V (AC-3) 1.5 kW at 230...240 V (AC-3) 5.5 kW at 500 V (AC-23A) 5.5 kW at 690 V (AC-3) 7.5 kW at 690 V (AC-23A) 3 kW at 230...240 V (AC-23A) 4 kW at 400...415 V (AC-23A)
intermittent duty class	30
Making capacity ( I Rms)	120 A at 400 V AC-21A 120 A at 400 V AC-22A 120 A at 400 V AC-23A
[Icm] rated short-circuit making capacity	1 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current	300 A at 400 V duration: 1 s
rated conditional short-circuit current	10 kA at 400 V - associated fuse 12 A aM 10 kA at 400 V - associated fuse 12 A gG
breaking capacity	120 A at 400 V (AC-21A) 120 A at 400 V (AC-22A) 120 A at 400 V (AC-23A)
device composition	Switch Handle
mechanical durability	100000 cycles
electrical durability	100000 cycles AC-21 30000 cycles DC-1 30000 cycles DC-2 30000 cycles DC-3 30000 cycles DC-4 30000 cycles DC-5
connections - terminals	Power circuit: screw clamp terminals10 mm² - solid Power circuit: screw clamp terminals6 mm² - flexible - with cable end
tightening torque	Power circuit: 2.1 N.m - on screw clamp terminals
handle front plate dimension	60 x 60 mm
height	74 mm
width	60 mm
net weight	0.25 kg
