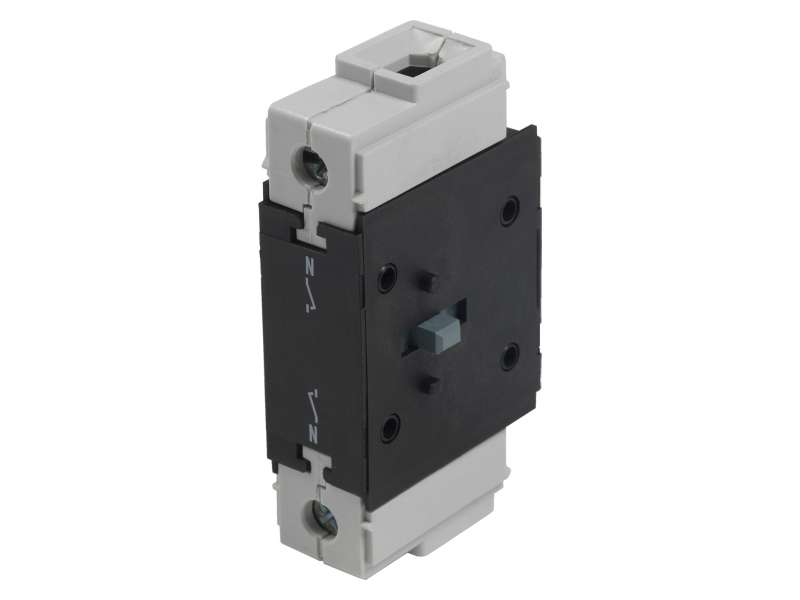

Schneider Electric TeSys VARIO - dodatni kontakt pola nule - 80 A - za V3 / V4;VZ12
TeSys VARIO - additional neutral block - 80 A - for V3 / V4...
VAT-exclusive price: 3.273,00 |
VAT-inclusive price: 3.927,60 |
TeSys VARIO - additional neutral block - 80 A - for V3 / V4
| range |
TeSys
|
|
|---|---|---|
| device short name |
VZ
|
|
| product or component type |
Additional neutral block
|
|
| performance level |
High performance
|
|
| poles description |
1N
|
|
| contacts type and composition |
1 NO
|
|
| contact operation |
Early make, late break
|
|
| product compatibility |
V3
V4 |
|
| range compatibility |
TeSys VARIO switch disconnector
|
|
| network type |
AC
DC |
|
| network frequency |
50/60 Hz
|
| mounting location |
Left
Right |
|
|---|---|---|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| [Ith] conventional free air thermal current |
80 A
|
|
| mechanical durability |
30000 cycles
|
|
| electrical durability |
30000 cycles DC-1...5
30000 cycles AC-21 |
|
| connections - terminals |
Screw clamp terminals16 mm² - flexible - with cable end
Screw clamp terminals25 mm² - solid |
|
| tightening torque |
4 N.m - on screw clamp terminals
|
|
| height |
83 mm
|
|
| width |
20 mm
|
|
| depth |
46 mm
|
|
| net weight |
0.1 kg
|
| standards |
IEC 60947-3
|
|
|---|---|---|
| product certifications |
GL
UL CSA |
|
| protective treatment |
TC
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| mechanical robustness |
Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
|
| ambient air temperature for operation |
-20…50 °C
|
|
| fire resistance |
960 °C conforming to IEC 60695-2-1
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
86 g
|
|
| Package 1 Height |
4 cm
|
|
| Package 1 width |
5.5 cm
|
|
| Package 1 Length |
9.2 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
69
|
|
| Package 2 Weight |
6.28 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|---|
-
TeSys Vario Mini-Vario VZ12
