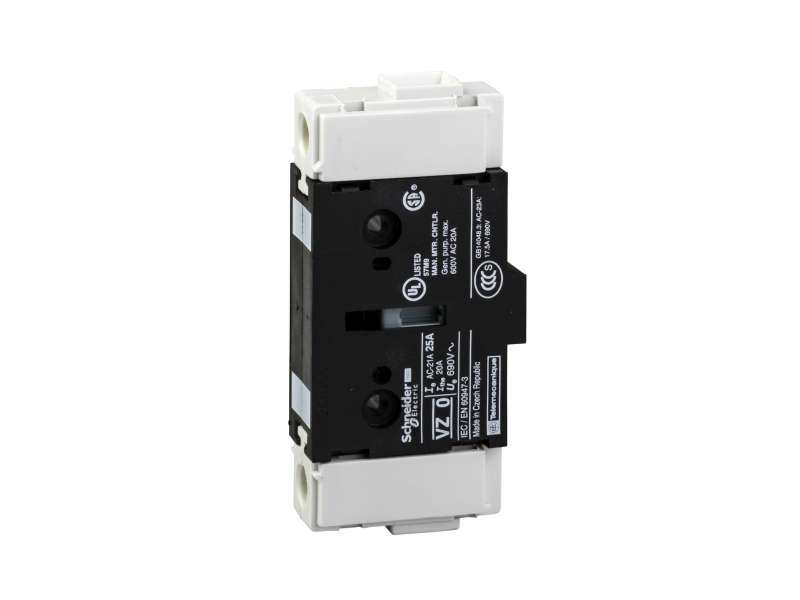

Schneider Electric TeSys VARIO - dodatni kontakt glavnog pola - 12 A - za V02;VZ02
TeSys VARIO - additional pole - 12 A - for V02...
VAT-exclusive price: 1.842,00 |
VAT-inclusive price: 2.210,40 |
TeSys VARIO - additional pole - 12 A - for V02
| range |
TeSys
|
|
|---|---|---|
| device short name |
VZ
|
|
| product or component type |
Additional pole
|
|
| performance level |
High performance
|
|
| poles description |
1P
|
|
| contacts type and composition |
1 NO
|
|
| product compatibility |
V02
|
|
| range compatibility |
TeSys VARIO switch disconnector
|
|
| network type |
DC
AC |
|
| network frequency |
50/60 Hz
|
|
| suitability for isolation |
Yes
|
| mounting location |
Left
|
|
|---|---|---|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
| [Ith] conventional free air thermal current |
12 A
|
|
| [Ithe] conventional enclosed thermal current |
10 A
|
|
| mechanical durability |
100000 cycles
|
|
| electrical durability |
100000 cycles AC-21
30000 cycles DC-1...5 |
|
| connections - terminals |
Power circuit: screw clamp terminals6 mm² - flexible - with cable end
Power circuit: screw clamp terminals10 mm² - solid |
|
| tightening torque |
Power circuit: 2.1 N.m - on screw clamp terminals
|
|
| height |
74 mm
|
|
| width |
16 mm
|
|
| depth |
35 mm
|
|
| net weight |
0.05 kg
|
| standards |
IEC 60947-3
|
|
|---|---|---|
| product certifications |
CSA
UL GL |
|
| protective treatment |
TC
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| mechanical robustness |
Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
|
| ambient air temperature for operation |
-20…50 °C
|
|
| fire resistance |
960 °C conforming to IEC 60695-2-1
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
48 g
|
|
| Package 1 Height |
3.7 cm
|
|
| Package 1 width |
5.5 cm
|
|
| Package 1 Length |
9 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
69
|
|
| Package 2 Weight |
3.686 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
-
TeSys Vario Mini-Vario VZ02
