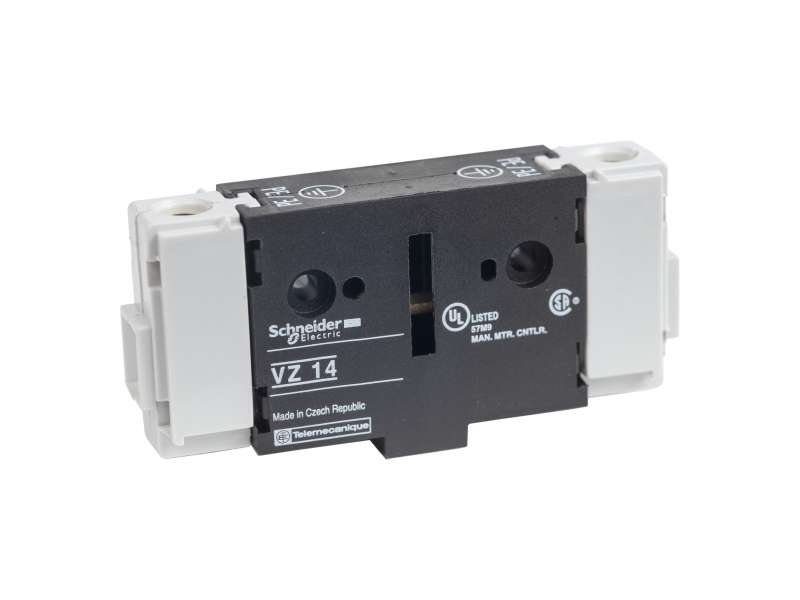

Schneider Electric TeSys VARIO - dodatni blok uzemljenja - 40 A - za V02...V2;VZ14
TeSys VARIO - additional earthing block - 40 A - for V02...V2...
VAT-exclusive price: 2.451,00 |
VAT-inclusive price: 2.941,20 |
TeSys VARIO - additional earthing block - 40 A - for V02...V2
| range |
TeSys
|
|
|---|---|---|
| device short name |
VZ
|
|
| product or component type |
Additional earthing block
|
|
| performance level |
High performance
|
|
| contacts type and composition |
Without
|
|
| product compatibility |
V0
V02 V2 V01 V1 |
|
| network type |
AC
DC |
|
| network frequency |
50/60 Hz
|
| mounting location |
Right
Left |
|
|---|---|---|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| [Ith] conventional free air thermal current |
40 A
|
|
| connections - terminals |
Screw clamp terminals
|
|
| height |
74 mm
|
|
| width |
16 mm
|
|
| depth |
35 mm
|
|
| net weight |
0.05 kg
|
| standards |
IEC 60947-3
|
|
|---|---|---|
| product certifications |
UL
GL CSA |
|
| protective treatment |
TC
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| mechanical robustness |
Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6
Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
|
| ambient air temperature for operation |
-20…50 °C
|
|
| fire resistance |
960 °C conforming to IEC 60695-2-1
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
46 g
|
|
| Package 1 Height |
3.7 cm
|
|
| Package 1 width |
5.5 cm
|
|
| Package 1 Length |
9 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
69
|
|
| Package 2 Weight |
3.514 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
-
TeSys Vario Mini-Vario VZ14
