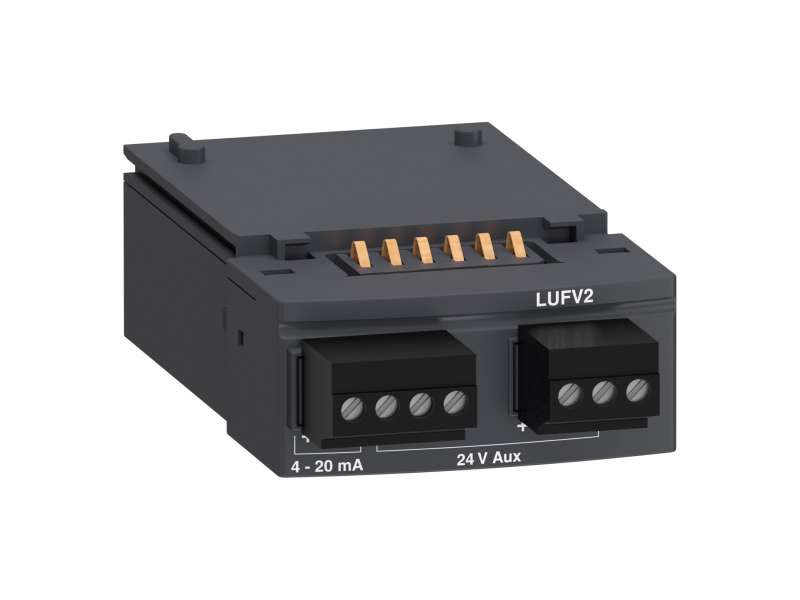

Schneider Electric TeSys U - LUF indikacija opterećenja motora 4...20 mA

Function module, TeSys U, indication of motor load 4...20 mA...

Brand: Schneider Electric
Product Code: LUFV2
Availability: Check availability

VAT-exclusive price: 10.741,00

VAT-inclusive price: 12.889,20

Qnt:

Function module, TeSys U, indication of motor load 4...20 mA

Main
range	TeSys
device short name	LUF
Product or component type	Function module
Product compatibility	LUCC LUCM LUCB LUCD

Complementary
Mounting mode	Plug-in
Mounting location	Front side
main function available	Indication of motor load
[Us] rated supply voltage	24 V DC
analogue output current	4…20 mA
type of output signal	Value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD Value of I average/Ir ratio within the range of 0 to 3 for LUCC
load impedance ohmic	100 Ohm typical <= 500 Ohm
measurement accuracy	+/- 10 % with multifunction control unit - resolution: 1 % of Ir +/- 6 % with advanced control unit
connection pitch	3.81 mm
connections - terminals	Screw clamp terminals 1 cable(s) 0.14…1 mm² flexible without cable end Screw clamp terminals 1 cable(s) 0.14…1 mm² rigid without cable end Screw clamp terminals 1 cable(s) 0.25…0.5 mm² flexible with cable end Screw clamp terminals 1 cable(s) 0.25…1 mm² flexible with cable end Screw clamp terminals 2 cable(s) 0.14…0.5 mm² rigid without cable end Screw clamp terminals 2 cable(s) 0.14…0.75 mm² flexible without cable end Screw clamp terminals 2 cable(s) 0.25…0.34 mm² flexible with cable end Screw clamp terminals 2 cable(s) 0.5 mm² flexible with cable end
associated cable type	AWG 26...AWG 16
tightening torque	0.2…0.25 N.m - with screwdriver 2.5 mm flat
Net weight	0.05 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	52 g
Package 1 Height	3.3 cm
Package 1 width	4.7 cm
Package 1 Length	9.5 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
