Schneider Electric TeSyS rastavljač sa osiguračima 3P N 50A - veličina osigurača 14 x 51 mm;DF143NC
Fuse carrier TeSys DF, 3P+N 50A, fuse size 14x51 mm...
VAT-exclusive price: 6.945,00 |
VAT-inclusive price: 8.334,00 |

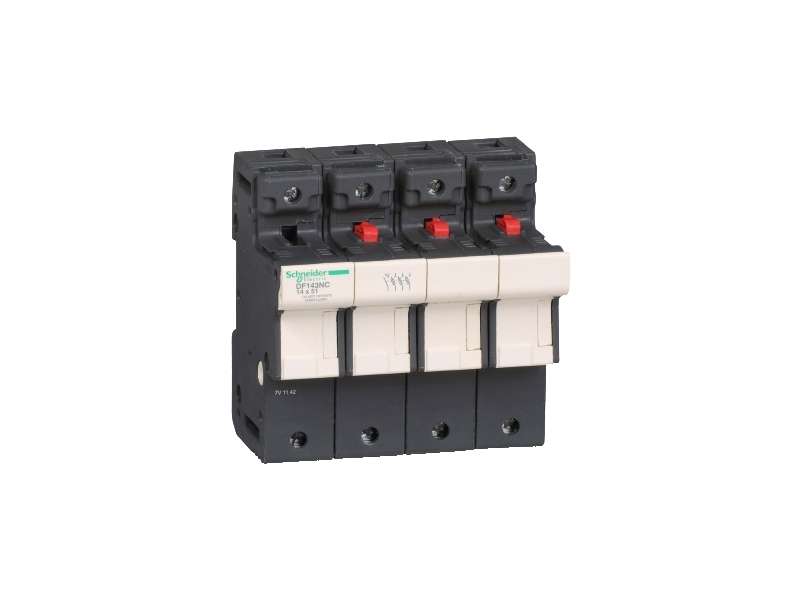

Fuse carrier TeSys DF, 3P+N 50A, fuse size 14x51 mm
| range | TeSys |
|---|---|
| product name | TeSys DF |
| product or component type | Fuse carrier |
| device short name | DF14 |
| device composition | Tubular link for locked in Neutral pole |
| product compatibility |
DF3EA fuse cartridge striker DF3EN fuse cartridge striker DF14AM auxiliary contact block |
| poles description | 3P + N |
| fuse size | 14 x 51 mm |
| fuse type |
, aM , gG |
| control type | Toggle |
| [Ue] rated operational voltage |
690 V AC 690 V DC |
| [Ie] rated operational current | 50 A |
| [Ui] rated insulation voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ipk] rated peak withstand current | 15 kA with tubular links conforming to IEC 60269-1 |
| short-circuit withstand |
120 kA 400 V conforming to IEC 60947-3 120 kA 500 V conforming to IEC 60947-3 80 kA 690 V conforming to IEC 60947-3 |
| standards |
EN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1 |
|---|---|
| product certifications |
IEC UL recognized CSA EAC |
| mounting support | 35 mm symmetrical DIN rail |
| mounting position | Vertical (tolerance: +/- 23°) |
| connections - terminals |
Screw clamp terminals 1 cable(s) 2.5…25 mm²rigid Screw clamp terminals 2 cable(s) 2.5…10 mm²rigid Screw clamp terminals 1 cable(s) 2.5…25 mm²flexible with or without Screw clamp terminals 2 cable(s) 2.5…10 mm²flexible with or without |
| tightening torque | 3.5 N.m |
| height | 110.8 mm |
| width | 105 mm |
| depth | 76.5 mm |
| net weight | 0.570 kg |
| quantity per set | Set of 1 |
| ambient air temperature for storage | -40…80 °C |
|---|---|
| ambient air temperature for operation | -20…60 °C with derating above 20°C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| protective treatment | TH |
| fire resistance | 960 °C conforming to IEC 60695-2-1 |
| compatibility code | DF14 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 551.0 g |
| Package 1 Height | 8.1 cm |
| Package 1 width | 12.0 cm |
| Package 1 Length | 17.3 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 7.054 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| range | TeSys |
|---|---|
| product name | TeSys DF |
| product or component type | Fuse carrier |
| device short name | DF14 |
| device composition | Tubular link for locked in Neutral pole |
| product compatibility |
DF3EA fuse cartridge striker DF3EN fuse cartridge striker DF14AM auxiliary contact block |
| poles description | 3P + N |
| fuse size | 14 x 51 mm |
| fuse type |
, aM , gG |
| control type | Toggle |
| [Ue] rated operational voltage |
690 V AC 690 V DC |
| [Ie] rated operational current | 50 A |
| [Ui] rated insulation voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ipk] rated peak withstand current | 15 kA with tubular links conforming to IEC 60269-1 |
| short-circuit withstand |
120 kA 400 V conforming to IEC 60947-3 120 kA 500 V conforming to IEC 60947-3 80 kA 690 V conforming to IEC 60947-3 |
| standards |
EN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1 |
|---|---|
| product certifications |
IEC UL recognized CSA EAC |
| mounting support | 35 mm symmetrical DIN rail |
| mounting position | Vertical (tolerance: +/- 23°) |
| connections - terminals |
Screw clamp terminals 1 cable(s) 2.5…25 mm²rigid Screw clamp terminals 2 cable(s) 2.5…10 mm²rigid Screw clamp terminals 1 cable(s) 2.5…25 mm²flexible with or without Screw clamp terminals 2 cable(s) 2.5…10 mm²flexible with or without |
| tightening torque | 3.5 N.m |
| height | 110.8 mm |
| width | 105 mm |
| depth | 76.5 mm |
| net weight | 0.570 kg |
| quantity per set | Set of 1 |
| ambient air temperature for storage | -40…80 °C |
|---|---|
| ambient air temperature for operation | -20…60 °C with derating above 20°C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| protective treatment | TH |
| fire resistance | 960 °C conforming to IEC 60695-2-1 |
| compatibility code | DF14 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 551.0 g |
| Package 1 Height | 8.1 cm |
| Package 1 width | 12.0 cm |
| Package 1 Length | 17.3 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
