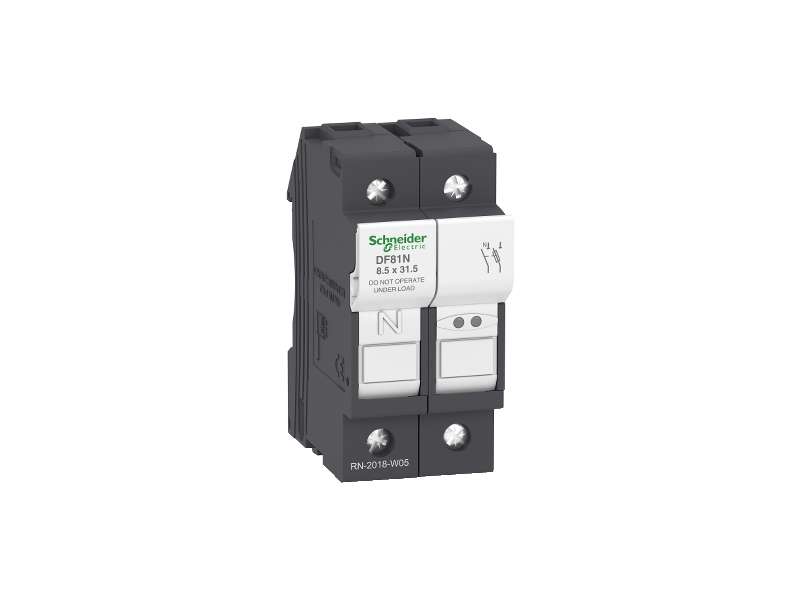

Fuse carrier TeSys DF, 1P+N 25A, fuse size 8.5x31.5 mm
| range | TeSys |
|---|---|
| product name | TeSys DF |
| product or component type | Fuse carrier |
| device short name | DF8 |
| device composition | Tubular link for locked in Neutral pole |
| product compatibility |
DF2BA fuse cartridge DF2BN fuse cartridge |
| poles description | 1P + N |
| fuse size | 8.3 x 31.5 mm |
| fuse type |
, gG , aM |
| control type | Toggle padlockable |
| utilisation category | AC-20B conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 400 V AC |
| [Ie] rated operational current | 25 A at 400 V AC |
| [Ith] conventional free air thermal current | 25 A 20 °C |
| [Ui] rated insulation voltage | 500 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| overvoltage category | III |
| short-circuit withstand | 20 kA 400 V conforming to IEC 60947-3 |
| power dissipation in W | 2.5 W maximum power dissipation by fuse |
| standards |
EN/IEC 60947-3 EN/IEC 60269-2 |
|---|---|
| product certifications |
IEC EAC DNV-GL |
| mounting support | 35 mm symmetrical DIN rail |
| mounting position | Vertical (tolerance: +/- 23°) |
| connections - terminals |
Screw clamp terminals 1 cable(s) 1…16 mm²rigid Screw clamp terminals 2 cable(s) 1…6 mm²rigid Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without |
| tightening torque |
2.2 N.m - with screwdriver PZ2 2.2 N.m - with screwdriver flat Ø 5.5 mm |
| height | 79.5 mm |
| width | 35 mm |
| depth | 61 mm |
| net weight | 0.087 kg |
| quantity per set | Set of 6 |
| ambient air temperature for storage | -40…70 °C |
|---|---|
| ambient air temperature for operation | -40…70 °C with derating above 20°C |
| operating altitude | 0...2000 m without derating |
| IP degree of protection | IP20 |
| pollution degree | 3 |
| fire resistance | 960 °C conforming to IEC 60695-2-1 |
| compatibility code | DF8 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 91.0 g |
| Package 1 Height | 6.3 cm |
| Package 1 width | 3.5 cm |
| Package 1 Length | 8.0 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 586.0 g |
| Package 2 Height | 6.8 cm |
| Package 2 width | 8.5 cm |
| Package 2 Length | 22.2 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 90 |
| Package 3 Weight | 12.083 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| range | TeSys |
|---|---|
| product name | TeSys DF |
| product or component type | Fuse carrier |
| device short name | DF8 |
| device composition | Tubular link for locked in Neutral pole |
| product compatibility |
DF2BA fuse cartridge DF2BN fuse cartridge |
| poles description | 1P + N |
| fuse size | 8.3 x 31.5 mm |
| fuse type |
, gG , aM |
| control type | Toggle padlockable |
| utilisation category | AC-20B conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 400 V AC |
| [Ie] rated operational current | 25 A at 400 V AC |
| [Ith] conventional free air thermal current | 25 A 20 °C |
| [Ui] rated insulation voltage | 500 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| overvoltage category | III |
| short-circuit withstand | 20 kA 400 V conforming to IEC 60947-3 |
| power dissipation in W | 2.5 W maximum power dissipation by fuse |
| standards |
EN/IEC 60947-3 EN/IEC 60269-2 |
|---|---|
| product certifications |
IEC EAC DNV-GL |
| mounting support | 35 mm symmetrical DIN rail |
| mounting position | Vertical (tolerance: +/- 23°) |
| connections - terminals |
Screw clamp terminals 1 cable(s) 1…16 mm²rigid Screw clamp terminals 2 cable(s) 1…6 mm²rigid Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without |
| tightening torque |
2.2 N.m - with screwdriver PZ2 2.2 N.m - with screwdriver flat Ø 5.5 mm |
| height | 79.5 mm |
| width | 35 mm |
| depth | 61 mm |
| net weight | 0.087 kg |
| quantity per set | Set of 6 |
| ambient air temperature for storage | -40…70 °C |
|---|---|
| ambient air temperature for operation | -40…70 °C with derating above 20°C |
| operating altitude |
