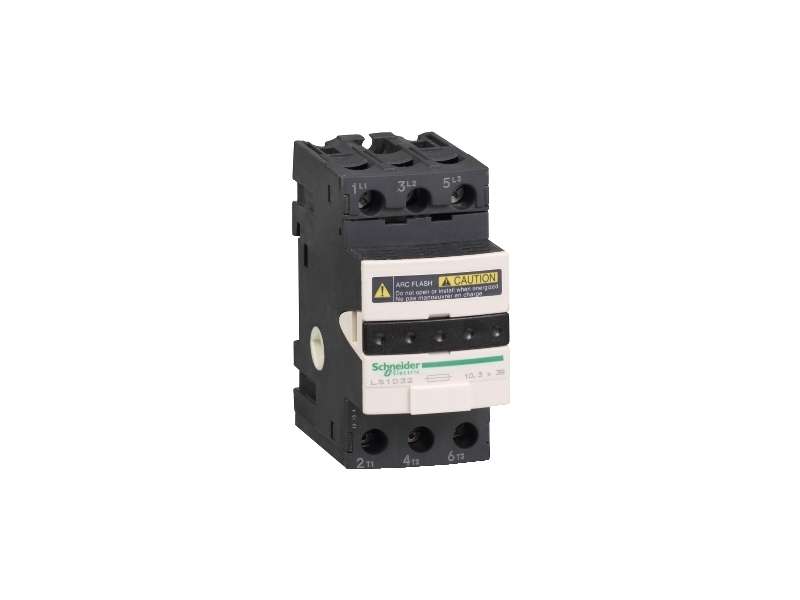

Schneider Electric TeSys rastavljač sa osigur.- 3P - 30 A - veličina osigurača 10 x 38 mm - vijčani;LS1D32
TeSys fuse-disconnector - 3P - 30 A - fuse size 10 x 38 mm - screw type...
Price on request
TeSys fuse-disconnector - 3P - 30 A - fuse size 10 x 38 mm - screw type
| range | TeSys |
|---|---|
| product name | TeSys LS1 |
| product or component type | Fuse-disconnector |
| device short name | LS1D |
| poles description | 3P |
| mounting support | Rail |
|---|---|
| mounting position | Vertical (tolerance: +/- 23°) |
| control type | Toggle |
| [Ue] rated operational voltage | 600 V |
| [Ie] rated operational current | 32 A for power circuit |
| local signalling | Blown fuse indication |
| fuse size | 10 x 38 mm |
| fuse type |
AM GG |
| associated fuse rating |
30 A aM 30 A gG |
| connections - terminals |
Screw clamp terminals 2 cable(s) 1…6 mm²solid Screw clamp terminals 2 cable(s) 1…6 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end |
| tightening torque | 1.7 N.m on screw clamp terminals |
| standards |
IEC 60947-4-1 IEC 60947-2 IEC 60947-1 |
|---|---|
| product certifications |
BV UR |
| IP degree of protection | IP20 |
| protective treatment | TH |
| ambient air temperature for operation | -50…70 °C operation |
| height | 89 mm |
| width | 45 mm |
| depth | 68.3 mm |
| net weight | 0.3 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 188.0 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 11.1 cm |
| Package 1 Length | 7.7 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 50 |
| Package 2 Weight | 10.075 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
