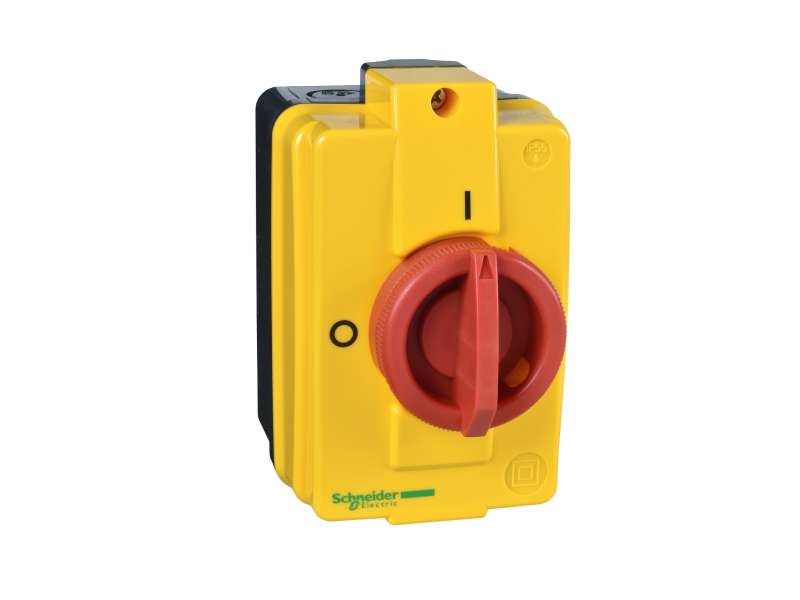

Schneider Electric TeSys Mini-VARIO - rastavljač za nužno isključenje u kućištu - 16 A;VCFN20GE
TeSys Vario enclosed, emergency stop switch disconnector, 16A, IP55...
VAT-exclusive price: 5.504,00 |
VAT-inclusive price: 6.604,80 |
TeSys Vario enclosed, emergency stop switch disconnector, 16A, IP55
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys Mini-VARIO
|
|
| device short name |
VCFN
|
|
| product or component type |
Emergency stop switch disconnector
|
|
| performance level |
Standard
|
|
| poles description |
3P
|
|
| control type |
Rotary handle
|
|
| handle colour |
Red
|
|
| handle front plate colour |
Yellow
|
|
| rotary handle padlocking |
1 to 3 padlocks 4…8 mm
|
| marking |
0 - 1
|
|
|---|---|---|
| [Ue] rated operational voltage |
690 V AC
|
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
| [Ithe] conventional enclosed thermal current |
16 A
|
|
| [Ie] rated operational current |
11 A (AC-23A) at 400 V
|
|
| rated operational power in W |
5.5 kW at 400 V (AC-23)
4 kW at 400 V (AC-3) |
|
| intermittent duty class |
30
|
|
| Making capacity ( I Rms) |
200 A at 400 V AC-21A
200 A at 400 V AC-22A 200 A at 400 V AC-23A |
|
| [Icm] rated short-circuit making capacity |
0.5 kA at 400 V at Ipeak
|
|
| [Icw] rated short-time withstand Rms current |
140 A at 400 V duration: 1 s
|
|
| rated conditional short-circuit current |
6 kA at 400 V - associated fuse 20 A aM
6 kA at 400 V - associated fuse 20 A gG |
|
| breaking capacity |
200 A at 400 V (AC-21A)
200 A at 400 V (AC-22A) 200 A at 400 V (AC-23A) |
|
| mechanical durability |
50000 cycles
|
|
| electrical durability |
30000 cycles DC-1...5
50000 cycles AC-21 |
|
| suitability for isolation |
Yes
|
|
| connections - terminals |
Control circuit: connector cable(s) 4 mm² flexible with cable end
Control circuit: connector cable(s) 4 mm² solid |
|
| tightening torque |
Control circuit: 0.7 N.m - on connector
|
|
| fire resistance |
960 °C conforming to IEC 60595-2-1
|
|
| handle front plate dimension |
60 x 60 mm
|
|
| height |
131 mm
|
|
| width |
82.5 mm
|
|
| depth |
106 mm
|
|
| net weight |
0.422 kg
|
| standards |
IEC 60947-4-1
|
|
|---|---|---|
| protective treatment |
TC
|
|
| mechanical robustness |
Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
|
| ambient air temperature for operation |
-20…50 °C
|
| Package 1 Weight |
0.506 kg
|
|
|---|---|---|
| Package 1 Height |
0.900 dm
|
|
| Package 1 width |
1.400 dm
|
|
| Package 1 Length |
1.100 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
-
TeSys Vario Mini-Vario VCFN20GE
