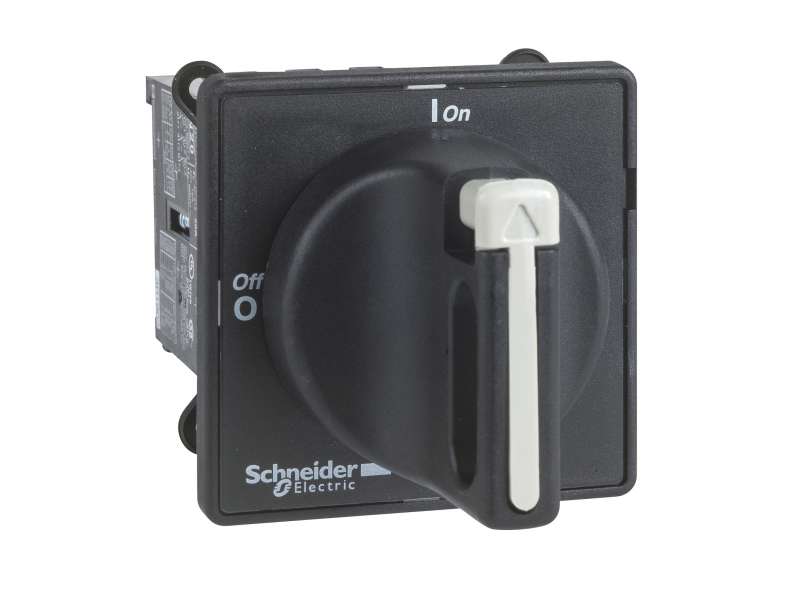

Name: Schneider Electric TeSys Mini-Vario - rastavljač - 20 A - montaža na vrata;VBDN20
Brand: Schneider Electric
SKU: VBDN20
Price: 4665.60 RSD
Availability: OutOfStock

Schneider Electric TeSys Mini-Vario - rastavljač - 20 A - montaža na vrata;VBDN20

TeSys Mini-Vario - switch disconnector - 20 A - on door...

Brand: Schneider Electric
Product Code: VBDN20
Availability: Check availability

VAT-exclusive price: 3.888,00

VAT-inclusive price: 4.665,60

Qnt:

TeSys Mini-Vario - switch disconnector - 20 A - on door

Main
range	TeSys
product name	TeSys Mini-VARIO
device short name	VBDN
product or component type	Switch disconnector
performance level	Standard
poles description	3P
contacts type and composition	3 NO
network type	DC AC
control type	Rotary handle
rotary handle mounting style	Direct
handle colour	Black
handle front plate colour	Black
rotary handle padlocking	1 to 3 padlocks 4…8 mm

Complementary
marking	0 - 1
mounting support	Handle: door Switch: door
fixing mode	Hole with 22.5 mm for handle
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV
[Ith] conventional free air thermal current	20 A
[Ithe] conventional enclosed thermal current	16 A
[Ie] rated operational current	11 A (AC-23) at 400 V
rated operational power in W	4 kW at 230...240 V (AC-23A) 5.5 kW at 400...415 V (AC-23A) 7.5 kW at 500 V (AC-23A) 11 kW at 690 V (AC-23A) 3 kW at 230...240 V (AC-3) 4 kW at 400...415 V (AC-3) 5.5 kW at 500 V (AC-3) 5.5 kW at 690 V (AC-3)
intermittent duty class	30
Making capacity ( I Rms)	200 A at 400 V AC-21A 200 A at 400 V AC-22A 200 A at 400 V AC-23A
[Icm] rated short-circuit making capacity	0.5 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current	140 A at 400 V duration: 1 s
rated conditional short-circuit current	6 kA at 400 V - associated fuse 20 A aM 6 kA at 400 V - associated fuse 20 A gG
breaking capacity	200 kA at 400 V (AC-21A) 200 kA at 400 V (AC-22A) 200 kA at 400 V (AC-23A)
device composition	Handle Switch
mechanical durability	50000 cycles
electrical durability	30000 cycles DC-1...5 50000 cycles AC-21
suitability for isolation	Yes
connections - terminals	Power circuit: screw clamp terminals4 mm² - flexible - with cable end Power circuit: screw clamp terminals4 mm² - solid
tightening torque	Power circuit: 0.7 N.m - on screw clamp terminals
handle front plate dimension	60 x 60 mm
height	60 mm
width	60 mm
net weight	0.177 kg

Environment
ambient air temperature for operation
standards	IEC 60947-3
product certifications	CSA UL CCC GL
protective treatment	TC
IP degree of protection	IP65
mechanical robustness	Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
