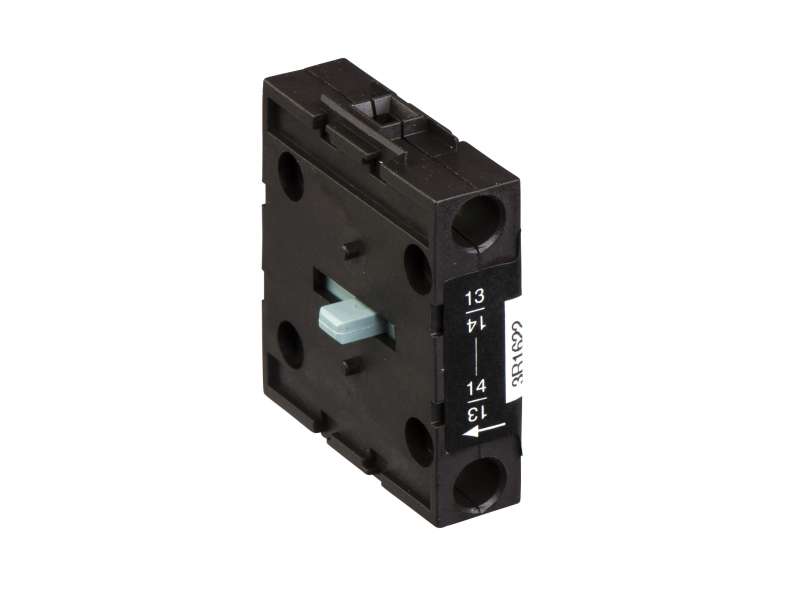

Schneider Electric TeSys Mini-VARIO - pomoćni kontaktni blok - 1 NO;VZN05
TeSys Mini-VARIO - auxiliary contact block - 1 NO...
VAT-exclusive price: 1.389,00 |
VAT-inclusive price: 1.666,80 |
TeSys Mini-VARIO - auxiliary contact block - 1 NO
| range |
TeSys
|
|
|---|---|---|
| device short name |
VZN
|
|
| product or component type |
Auxiliary contact block
|
|
| performance level |
Standard
|
|
| contacts type and composition |
1 NO
|
|
| contact operation |
Late-make
|
|
| product compatibility |
VN20
VN12 |
|
| network type |
AC
DC |
|
| network frequency |
50/60 Hz
|
|
| mounting location |
Right
Left |
| range compatibility |
TeSys VARIO VCFN switch disconnector
|
|
|---|---|---|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| [Ith] conventional free air thermal current |
6 A
|
|
| [Ithe] conventional enclosed thermal current |
4 A
|
|
| mechanical durability |
50000 cycles
|
|
| electrical durability |
30000 cycles DC-11
50000 cycles AC-21 |
|
| connections - terminals |
Screw clamp terminals 2 cable(s) 0.75…1.5 mm² - flexible - with cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm² - solid |
|
| tightening torque |
0.7 N.m - on screw clamp terminals
|
|
| height |
45.5 mm
|
|
| width |
12 mm
|
|
| depth |
39 mm
|
|
| net weight |
0.02 kg
|
| standards |
IEC 60947-5
|
|
|---|---|---|
| product certifications |
GL
CSA UL |
|
| protective treatment |
TC
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| ambient air temperature for operation |
-20…50 °C
|
|
| fire resistance |
960 °C conforming to IEC 60695-2-1
|
| Package 1 Weight |
0.021 kg
|
|
|---|---|---|
| Package 1 Height |
0.200 dm
|
|
| Package 1 width |
0.800 dm
|
|
| Package 1 Length |
1.000 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
TeSys Vario Mini-Vario VZN05
