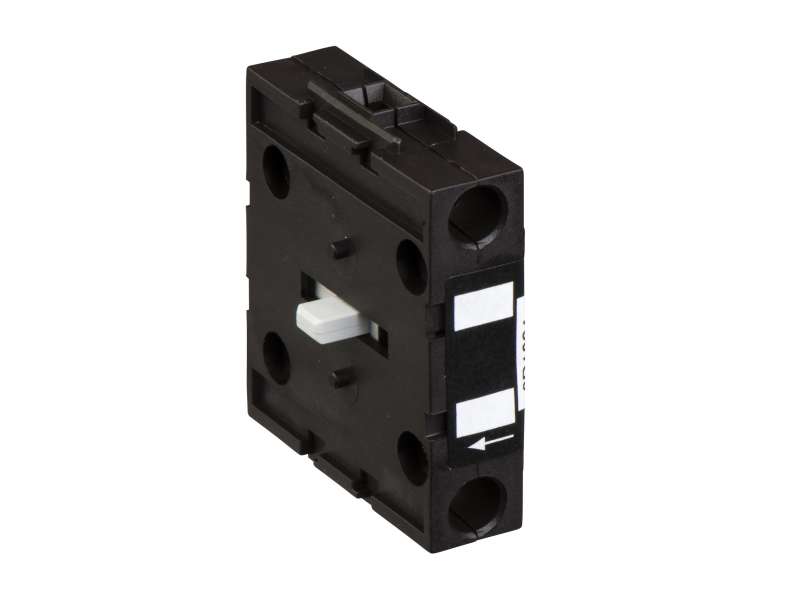

Schneider Electric TeSys Mini-VARIO - dodatni kontakt glavnog pola - 12 A - za VN-12;VZN12
TeSys Mini-VARIO - additional pole - 12 A - for VN-12...
VAT-exclusive price: 1.267,00 |
VAT-inclusive price: 1.520,40 |
TeSys Mini-VARIO - additional pole - 12 A - for VN-12
| range |
TeSys
|
|
|---|---|---|
| device short name |
VZN
|
|
| product or component type |
Additional pole
|
|
| performance level |
Standard
|
|
| poles description |
1P
|
|
| contacts type and composition |
1 NO
|
|
| product compatibility |
VN12
|
|
| network type |
AC
DC |
|
| network frequency |
50/60 Hz
|
|
| mounting location |
Right
Left |
| range compatibility |
TeSys VARIO VCFN switch disconnector
|
|
|---|---|---|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| [Ith] conventional free air thermal current |
12 A
|
|
| [Ithe] conventional enclosed thermal current |
10 A
|
|
| mechanical durability |
50000 cycles
|
|
| electrical durability |
30000 cycles DC-1...5
50000 cycles AC-21 |
|
| suitability for isolation |
Yes
|
|
| connections - terminals |
Power circuit: screw clamp terminals4 mm² - flexible - with cable end
Power circuit: screw clamp terminals4 mm² - solid |
|
| tightening torque |
Power circuit: 0.7 N.m - on screw clamp terminals
|
|
| height |
45.5 mm
|
|
| width |
12 mm
|
|
| depth |
39 mm
|
|
| net weight |
0.02 kg
|
| standards |
IEC 60947-3
|
|
|---|---|---|
| product certifications |
GL
UL CSA |
|
| protective treatment |
TC
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| mechanical robustness |
Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6
Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
|
| ambient air temperature for operation |
-20…50 °C
|
|
| fire resistance |
960 °C conforming to IEC 60595-2-1
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
22 g
|
|
| Package 1 Height |
2.4 cm
|
|
| Package 1 width |
7.7 cm
|
|
| Package 1 Length |
5.6 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
70
|
|
| Package 2 Weight |
1.751 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
|
| Package 2 Length |
40 cm
|
-
TeSys Vario Mini-Vario VZN12
