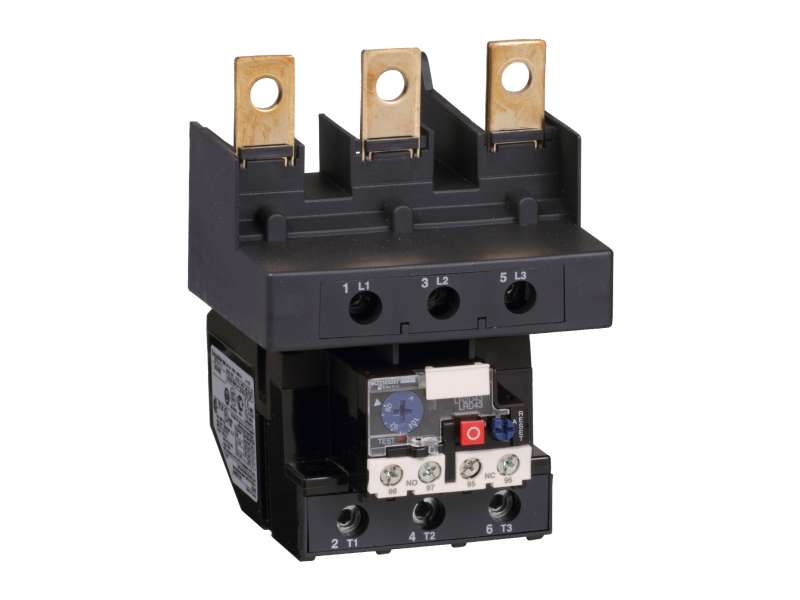

Name: Schneider Electric TeSys LRD termički relej - 95...120 A - klasa 10A; LRD4367
Brand: Schneider Electric
SKU: LRD4367
Price: 30045.60 RSD
Availability: OutOfStock

Schneider Electric TeSys LRD termički relej - 95...120 A - klasa 10A; LRD4367

Schneider TeSys LRD thermal overload relays - 95...120 A - class 10A; LRD4367...

Brand: Schneider Electric
Product Code: LRD4367
Availability: Check availability

VAT-exclusive price: 25.038,00

VAT-inclusive price: 30.045,60

Qnt:

Schneider TeSys LRD thermal overload relays - 95...120 A - class 10A; LRD4367

Main
range	TeSys
product name	TeSys LRD
product or component type	Differential thermal overload relay
device short name	LRD
relay application	Motor protection
product compatibility	LC1D150 LC1D115
network type	AC DC
thermal overload class	Class 10A conforming to IEC 60947-4-1
thermal protection adjustment range	95…120 A
[Ui] rated insulation voltage	Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL

Complementary
network frequency	0...400 Hz
mounting support	Plate, with specific accessories Rail, with specific accessories Under contactor
tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
auxiliary contact composition	1 NO + 1 NC
[Ith] conventional free air thermal current	5 A for signalling circuit
permissible current	0.06 A at 440 V DC-13 for signalling circuit 0.12 A at 600 V AC-15 for signalling circuit
[Ue] rated operational voltage	1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
associated fuse rating	4 A gG for signalling circuit 4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage	IEC 60947-1 6 kV
phase failure sensitivity	Tripping current 130 % of Ir on two phase, the last one at 0
control type	Red push-button: stop Blue push-button: reset
temperature compensation	-20…60 °C
connections - terminals	Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end Power circuit: screw clamp terminals 1 cable(s) 4…50 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 4…50 mm² solid without cable end
tightening torque	Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 9 N.m - on screw clamp terminals
depth	132 mm
net weight	0.9 kg

Environment
protective treatment	TH conforming to IEC 60068
IP degree of protection	IP20 conforming to IEC 60529
ambient air temperature for operation	-20…60 °C without derating conforming to IEC 60947-4-1
ambient air temperature for storage	-60…70 °C
flame retardance	V1 conforming to UL 94
mechanical robustness	Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
dielectric strength	2.2 kV at 50 Hz conforming to IEC 60947-1
standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495
product certifications	IEC UL CSA CCC EAC ATEX INERIS

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	834 g
Package 1 Height	13.8 cm
Package 1 width	10.2 cm
Package 1 Length	15.2 cm
Unit Type of Package 2	S03
