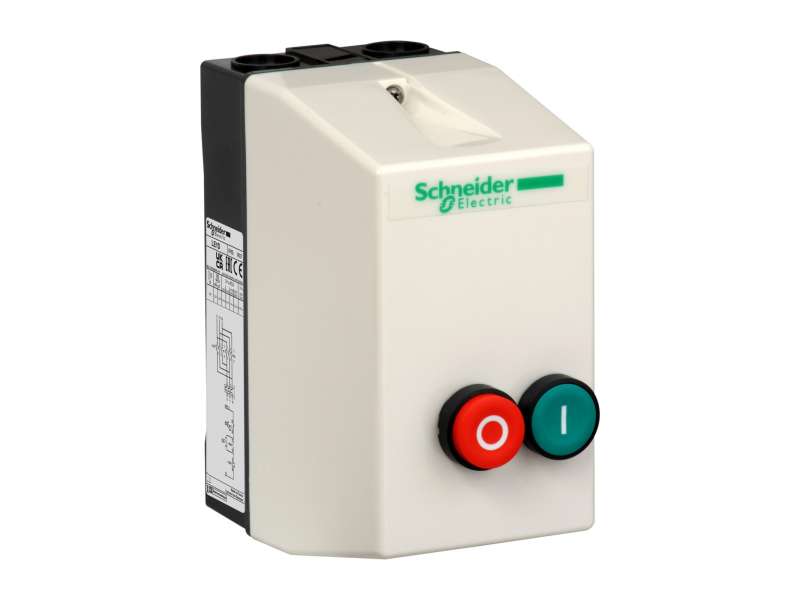

Schneider Electric TeSys LE - enclosed DOL starter - 9 A - 230 V AC coil; LE1D09P7
TeSys LE - enclosed DOL starter - 9 A - 230 V AC coil; LE1D09P7...
VAT-exclusive price: 9.581,00 |
VAT-inclusive price: 11.497,20 |
TeSys LE - enclosed DOL starter - 9 A - 230 V AC coil; LE1D09P7
| Range | TeSys |
|---|---|
| Product name | TeSys LE |
| device short name | LE1D |
| Product or component type | Enclosed DOL starter |
| Device application | Standard |
| Utilisation category | AC-3 |
| Device composition |
Thermal overload relay ordered separately Contactor |
| Control type |
Push-button start green I Push-button stop/reset red O |
| Motor power kW |
4 kW at 380/400 V AC 50/60 Hz 4 kW at 415 V AC 50/60 Hz 4 kW at 440 V AC 50/60 Hz 2.2 kW at 220/230 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz 5.5 kW at 660/690 V AC 50/60 Hz |
|---|---|
| [Ith] Conventional free air thermal current | 9 A |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Cable entry number |
2 ISO20 top 2 ISO20 bottom 2 Pg 13 bottom 2 Pg 16 bottom |
| Width | 88 mm |
| Height | 166 mm |
| Depth | 128.5 mm |
| Product weight | 0.92 kg |
| Material | Polycarbonate |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | -5…40 °C |
| Environmental characteristic | Standard environment |
| Product certifications | UKCA |
