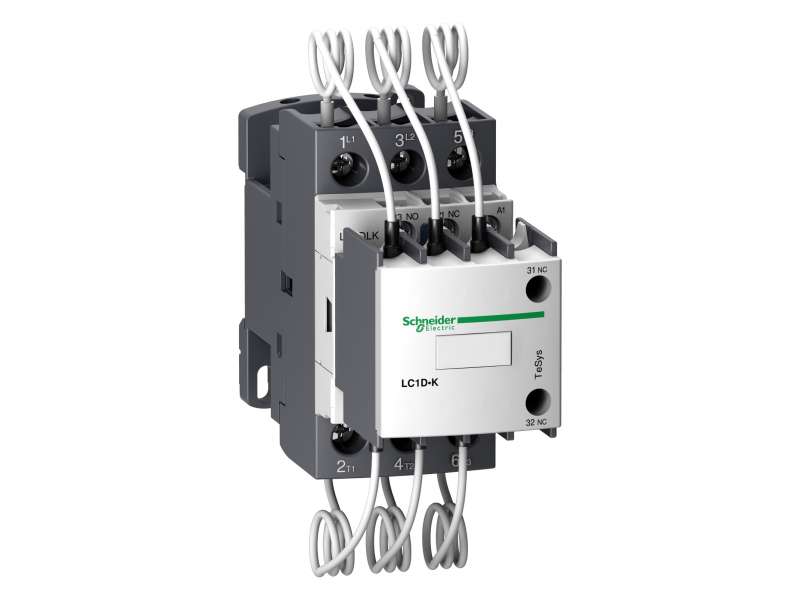

Schneider Electric TeSys LC1D.K kontaktor za konden. bat. - 3P - 20 kVAR - 415 V - 230 V AC kalem;LC1DLKP7
Capacitor contactor, TeSys D, 20 kVAR at 400 V/50 Hz, coil 230 V AC 50/60 Hz...
VAT-exclusive price: 11.180,00 |
VAT-inclusive price: 13.416,00 |
Capacitor contactor, TeSys D, 20 kVAR at 400 V/50 Hz, coil 230 V AC 50/60 Hz
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys LC1D.K
|
|
| product or component type |
Capacitor duty contactor
|
|
| device short name |
LC1DLK
|
|
| device application |
Control
|
|
| contactor application |
Power factor correction
|
|
| utilisation category |
AC-6b
|
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| device location in system |
Inside delta interruption
Line interruption |
|
| [Ue] rated operational voltage |
Power circuit: 690 V AC 50/60 Hz
|
|
| reactive power rating |
11 kvar at 230 V AC 50 Hz 60 °C
20 kvar at 400 V AC 50 Hz 60 °C 21 kvar at 440 V AC 50 Hz 60 °C 33 kvar at 690 V AC 50 Hz 60 °C |
|
| control circuit type |
AC at 50/60 Hz
|
|
| [Uc] control circuit voltage |
230 V AC 50/60 Hz
|
|
| auxiliary contact composition |
1 NO + 2 NC instantaneous
|
|
| electrical durability |
300000 cycles at Ue 400 V
200000 cycles at Ue 690 V |
|
| mounting support |
DIN rail
Plate |
|
| standards |
EN/IEC 60947-1
EN/IEC 60947-4-1 |
|
| product certifications |
IECEE CB Scheme
|
|
| connections - terminals |
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid Power circuit: screw clamp terminals 2 2.5…6 mm² - cable stiffness: solid Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
|
| tightening torque |
Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 2.5 N.m - on screw clamp terminals |
|
| maximum operating rate |
240 cyc/h
|
| auxiliary contacts type |
type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
|
|---|
| IP degree of protection |
IP20 front face conforming to IEC 60529
|
|
|---|---|---|
| ambient air temperature for operation |
-5…60 °C
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| operating altitude |
0...3000 m
|
|
| height |
125 mm
|
|
| width |
45 mm
|
|
| depth |
127 mm
|
|
| net weight |
0.6 kg
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
610 g
|
|
| Package 1 Height |
6.7 cm
|
|
| Package 1 width |
19.4 cm
|
|
| Package 1 Length |
22.7 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
6
|
|
| Package 2 Weight |
4.167 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
-
TeSys D LC1DLKP7
