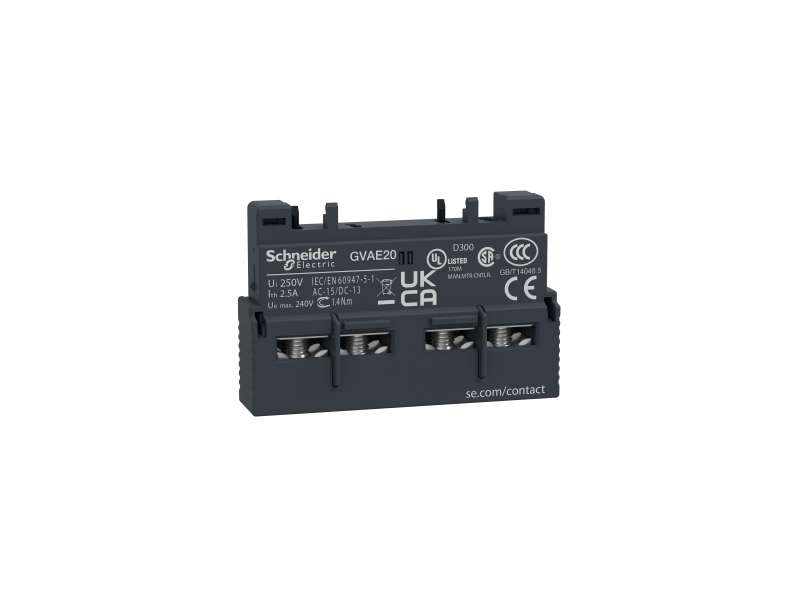

Schneider Electric TeSys GV2 & GV3 - pomoćni kontakt - 2 NO;GVAE20
TeSys Deca - auxiliary contact - 2 NO...
VAT-exclusive price: 1.444,00 |
VAT-inclusive price: 1.732,80 |
TeSys Deca - auxiliary contact - 2 NO
| range |
TeSys TeSys Deca |
|---|---|
| device short name | GVAE |
| product or component type | Auxiliary contact block |
| product compatibility |
GV2L GV3P GV2ME LS1D32 GV3L GV2RT GV2P GV2LE |
| mounting location | Front side |
| pole contact composition | 2 NO |
| quantity per set | Set of 10 |
| [Ui] rated insulation voltage |
300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 250 V conforming to IEC 60947-1 |
|---|---|
| [Ue] rated operational voltage |
24...240 V AC 24...60 V DC |
| [Ith] conventional free air thermal current | 2.5 A |
| protection type |
GG fuse 10 A GB2CB06 circuit breaker 10 A |
| mechanical durability | 100000 cycles |
| minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
| rated operational power in VA |
120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles 120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles 48 VA at 24 V AC-15 - electrical durability: 100000 cycles 60 VA at 48 V AC-15 - electrical durability: 100000 cycles |
| rated operational power in W |
15 W at 48 V DC-13 - electrical durability: 100000 cycles 24 W at 24 V DC-13 - electrical durability: 100000 cycles 9 W at 60 V DC-13 - electrical durability: 100000 cycles |
| tightening torque | 1.4 N.m - on screw clamp terminals |
| height | 11 mm |
| width | 45 mm |
| depth | 29 mm |
| net weight | 0.02 kg |
| environmental characteristic | Normal environment |
|---|---|
| product certifications | UKCA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 19.0 g |
| Package 1 Height | 1.6 cm |
| Package 1 width | 5.0 cm |
| Package 1 Length | 6.0 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 209.0 g |
| Package 2 Height | 6.3 cm |
| Package 2 width | 7.3 cm |
| Package 2 Length | 12.0 cm |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 220 |
| Package 3 Weight | 4.377 kg |
| Package 3 Height | 15.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
