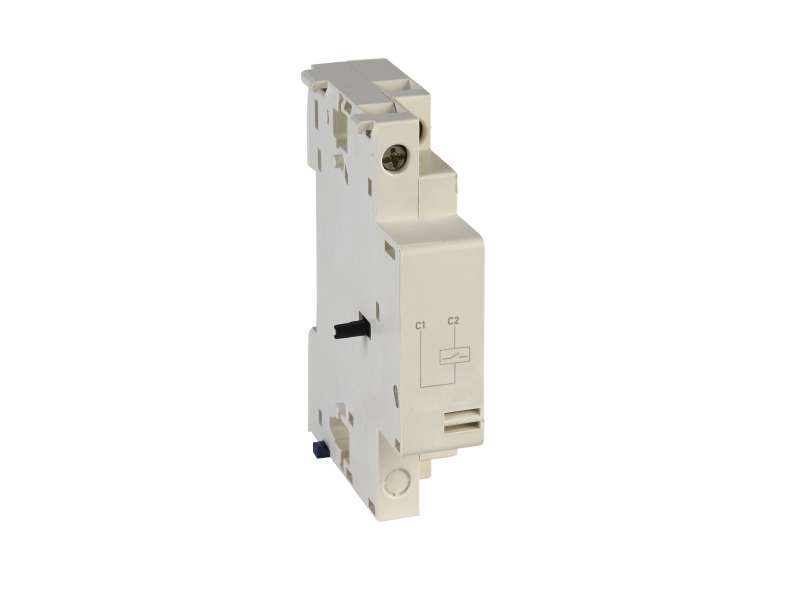

Name: Schneider Electric TeSys GV2 & GV3 - naponski okidač - 380...400V AC 50Hz;GVAS385
Brand: Schneider Electric
SKU: GVAS385
Price: 5083.20 RSD
Availability: OutOfStock

Schneider Electric TeSys GV2 & GV3 - naponski okidač - 380...400V AC 50Hz;GVAS385

Shunt release (MX), TeSys GV2-GV3, 380-400V AC 50Hz / 440V AC 60Hz...

Brand: Schneider Electric
Product Code: GVAS385
Availability: Check availability

VAT-exclusive price: 4.236,00

VAT-inclusive price: 5.083,20

Qnt:

Shunt release (MX), TeSys GV2-GV3, 380-400V AC 50Hz / 440V AC 60Hz

Main
range	TeSys
device short name	GVAS
product or component type	Shunt trip release

Complementary
range compatibility	GV2ME GV2LE GV2L GV2P GV3L GV3P
[Uc] control circuit voltage	380...400 V AC 50 Hz 440 V AC 60 Hz
control circuit voltage limits	0.7...1.1 Un
[Ui] rated insulation voltage	690 V AC conforming to IEC 60947-1 600 V AC conforming to UL 60947-4-1 600 V AC conforming to CSA C22.2 No 60947-4-1
threshold tripping voltage	0.75...0.2 Un
inrush power in VA	14 VA AC
inrush power in W	10.5 W
hold-in power consumption in VA	5 VA AC
hold-in power consumption in W	1.6 W
operating time	10...15 ms conforming to IEC 60947-1
on-load factor	100 %
connections - terminals	Screw clamp terminals 1 cable(s) 1…2.5 mm²solid Screw clamp terminals 2 cable(s) 1…2.5 mm²solid Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
tightening torque	< 1.4 N.m on screw clamp terminals
mechanical durability	10000 cycles with GV3P and GV3L 30000 cycles with GV2ME and GV2P
quantity per set	Set of 10
height	89 mm
width	18 mm
depth	66 mm
net weight	0.105 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	114 g
Package 1 Height	3.5 cm
Package 1 width	8.5 cm
Package 1 Length	9.2 cm
Unit Type of Package 2	S01
Number of Units in Package 2	16
Package 2 Weight	2.036 kg
Package 2 Height	15 cm
Package 2 width	15 cm
Package 2 Length	40 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
