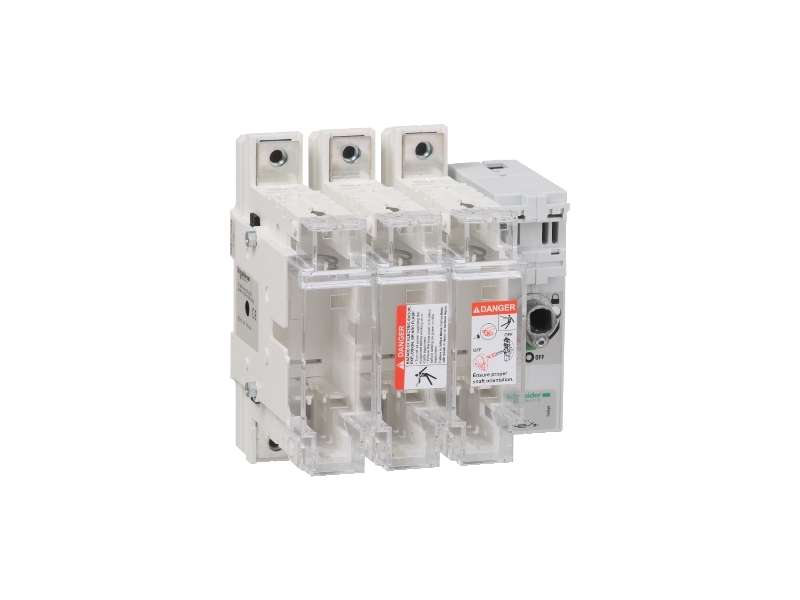

Schneider Electric TeSys GS - rastavljač sa osiguračima - 3 P - 400A - DIN 2;GS2QQ3
TeSys GS - switch-disconnector-fuse - 3 P - 400A - DIN 2...
VAT-exclusive price: 157.499,00 |
VAT-inclusive price: 188.998,80 |
TeSys GS - switch-disconnector-fuse - 3 P - 400A - DIN 2
| range | TeSys |
|---|---|
| product name | TeSys GS |
| device short name | GS2Q |
| product or component type | Switch-disconnector-fuse |
| poles description | 3P |
| protected poles description | 3t |
| contacts type and composition | 3 NO |
| [Ith] conventional free air thermal current | 400 A (at 40 °C) |
| [Ie] rated operational current |
200 A at 440 V 2 poles in series per phase with terminal covers DC-23A 315 A at 440 V 2 poles in series per phase with terminal covers DC-23B 250 A at 690 V AC-23A 315 A at 500 V AC-23A 315 A at 500 V AC-23B 400 A at 400 V AC-23A 400 A at 400 V AC-23B |
| fuse type | DIN |
| fuse size | 2 |
| network type |
DC AC |
| network frequency | 50/60 Hz |
| type of operating handle |
External frontal External right side |
|---|---|
| mounting support | Plate |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| rated operational power in W |
220 kW at 690 V 220 kW at 500 V 220 kW at 400 V 95 kW at 690 V |
| making capacity | 4000 A at 400 V AC-23B |
| [Icm] rated short-circuit making capacity | 50 kA at 400 V with protection by gG fuses |
| breaking capacity | 3200 A at 400 V (AC-23B) |
| short-circuit withstand | 40 kA |
| mechanical durability | 10000 cycles |
| electrical durability |
1000 cycles AC-23A 1000 cycles AC-23B 200 cycles DC-23A 200 cycles DC-23B |
| connections - terminals |
Power circuit: bars45 mm² Power circuit: lugs-ring terminals185…240 mm² |
| tightening torque | Power circuit: 25 N.m |
| standards | IEC 60947-3 |
|---|---|
| product certifications | CE |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| ambient air temperature for operation | -20…70 °C |
| ambient air temperature for storage | -40…80 °C |
| fire resistance |
850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1 |
| height | 205 mm |
| width | 252 mm |
| depth | 149 mm |
| net weight | 4.8 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 4.927 kg |
| Package 1 Height | 22.0 cm |
| Package 1 width | 23.0 cm |
| Package 1 Length | 36.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 52.416 kg |
| Package 2 Height | 73.5 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
| range | TeSys |
|---|---|
| product name | TeSys GS |
| device short name | GS2Q |
| product or component type | Switch-disconnector-fuse |
| poles description | 3P |
| protected poles description | 3t |
| contacts type and composition | 3 NO |
| [Ith] conventional free air thermal current | 400 A (at 40 °C) |
| [Ie] rated operational current |
200 A at 440 V 2 poles in series per phase with terminal covers DC-23A 315 A at 440 V 2 poles in series per phase with terminal covers DC-23B 250 A at 690 V AC-23A 315 A at 500 V AC-23A 315 A at 500 V AC-23B 400 A at 400 V AC-23A 400 A at 400 V AC-23B |
| fuse type | DIN |
| fuse size | 2 |
| network type |
DC AC |
| network frequency | 50/60 Hz |
| type of operating handle |
External frontal External right side |
|---|---|
| mounting support | Plate |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| rated operational power in W |
220 kW at 690 V 220 kW at 500 V 220 kW at 400 V 95 kW at 690 V |
| making capacity | 4000 A at 400 V AC-23B |
| [Icm] rated short-circuit making capacity | 50 kA at 400 V with protection by gG fuses |
| breaking capacity | 3200 A at 400 V (AC-23B) |
| short-circuit withstand | 40 kA |
| mechanical durability | 10000 cycles |
| electrical durability |
1000 cycles AC-23A 1000 cycles AC-23B 200 cycles DC-23A 200 cycles DC-23B |
| connections - terminals |
Power circuit: bars45 mm² Power circuit: lugs-ring terminals185…240 mm² |
| tightening torque | Power circuit: 25 N.m |
| standards | IEC 60947-3 |
|---|---|
| product certifications | CE |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| ambient air temperature for operation | -20…70 °C |
| ambient air temperature for storage | -40…80 °C |
| fire resistance |
850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1 |
| height | 205 mm |
| width | 252 mm |
| depth | 149 mm |
| net weight | 4.8 kg |
| Unit Type of Package 1 | PCE |
|---|---|
