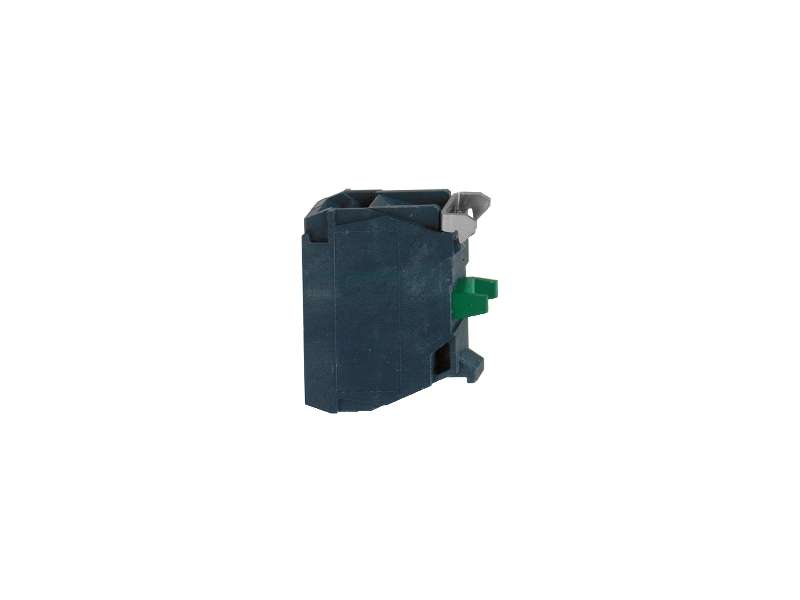

Schneider Electric TeSys GS - pomoćni kontakt prevremenog isključenja - 1 N/C -prednja strana- 32 A;GS1AM101
Auxiliary contacts, TeSys GS, 1 NC, early break, front mounting, for GS2 with front/side handle...
VAT-exclusive price: 1.990,00 |
VAT-inclusive price: 2.388,00 |
Auxiliary contacts, TeSys GS, 1 NC, early break, front mounting, for GS2 with front/side handle
| range of product | TeSys |
|---|---|
| device short name | GS1AM |
| product or component type | Auxiliary contact |
| contact application | O, I and test position signalling |
| range compatibility |
TeSys GS fuse-switch disconnector FuPacT GS fuse-switch disconnector |
| contacts type and composition | 1 NC |
| contact operation | Early-break |
| [Ith] conventional free air thermal current | 10 A (at 40 °C) |
| [Ie] rated operational current |
6 A at 120 V AC-15 3 A at 240 V AC-15 1.8 A at 400 V AC-15 1.5 A at 480 V AC-15 2.8 A at 24 V DC-13 1.4 A at 48 V DC-13 0.55 A at 125 V DC-13 0.27 A at 250 V DC-13 0.15 A at 400 V DC-13 |
| mechanical durability | 5 Mcycles |
|---|---|
| electrical durability | 1 Mcycles AC-15 |
| switch rated current |
30 A 32 A 50 A 60 A 63 A 100 A 125 A 160 A 200 A 250 A 315 A 400 A 600 A 630 A 800 A 1250 A |
| fuse type |
NFC DIN BS CC J |
| type of operating handle |
External frontal External right side External left side |
| mounting location | Front face |
| net weight | 0.015 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 13.0 g |
| Package 1 Height | 1.5 cm |
| Package 1 width | 6.0 cm |
| Package 1 Length | 8.0 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 308.0 g |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
