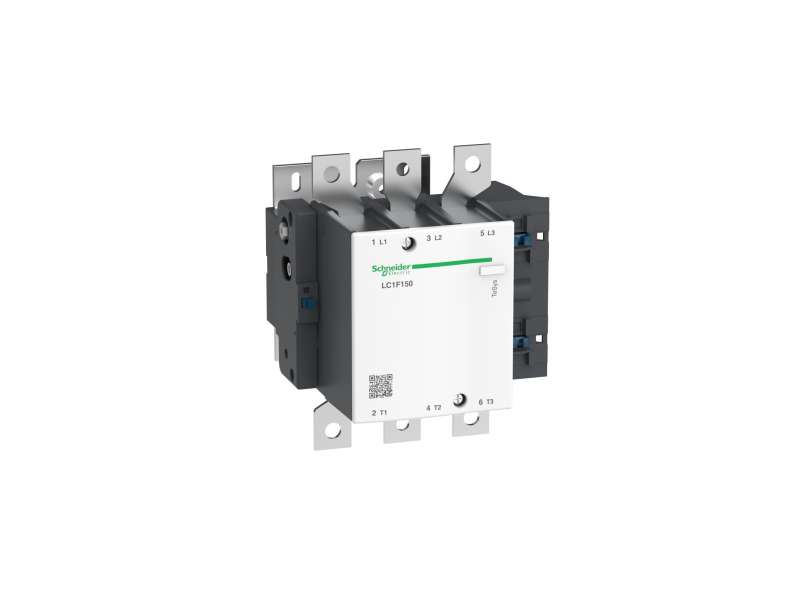

TeSys

TeSys F

Contactor

LC1F

Resistive load
Motor control

AC-1
AC-4
AC-3

3P

3 NO

<= 690 V AC 50/60 Hz

250 A (at <40 °C) at <= 440 V AC-1
150 A (at <55 °C) at <= 440 V AC-3

75 kW at 380...400 V AC 50/60 Hz (AC-3)
80 kW at 415 V AC 50/60 Hz (AC-3)
80 kW at 440 V AC 50/60 Hz (AC-3)
90 kW at 500 V AC 50/60 Hz (AC-3)
100 kW at 660...690 V AC 50/60 Hz (AC-3)
40 kW at 220...230 V AC 50/60 Hz (AC-3)
22 kW at 400 V AC 50/60 Hz (AC-4)

230 V AC 40...400 Hz

8 kV

III

250 A (at 40 °C)

1200 A conforming to IEC 60947-4-1

1200 A 40 °C - 10 s
700 A 40 °C - 30 s
600 A 40 °C - 1 min
450 A 40 °C - 3 min
350 A 40 °C - 10 min

160 A aM at <= 440 V
250 A gG at <= 440 V

0.35 mOhm - Ith 250 A 50 Hz

1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C

22 W AC-1
8 W AC-3

Plate

IEC 60947-4-1
IEC 60947-1
JIS C8201-4-1
EN 60947-1
EN 60947-4-1

RINA
LROS (Lloyds register of shipping)
UL
DNV
BV
RMRoS
CCC
ABS
CB

Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: bar 2 cable(s) - busbar cross section: 25 x 3 mm
Power circuit: lugs-ring terminals 1 cable(s) 120 mm²
Power circuit: connector 1 cable(s) 120 mm²
Power circuit: bolted connection

Control circuit: 1.2 N.m
Power circuit: 18 N.m

Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Drop-out: 0.35...0.55 Uc 40...400 Hz (at 55 °C)

770 VA 40...400 Hz cos phi 0.9 (at 20 °C)

8.1 VA 40...400 Hz cos phi 0.9 (at 20 °C)

5.9…7.2 W

35 ms closing (at Uc)
130 ms opening (at Uc)

10 Mcycles

2400 cyc/h 55 °C

LC1F

IP2x front face with shrouds conforming to IEC 60529
IP2x front face with shrouds conforming to VDE 0106

TH

-40…60 °C

-60…80 °C

60…70 °C at Uc

3000 m without derating

170 mm

163.5 mm

171 mm

3.43 kg

PCE

1

4.065 kg

20 cm

21.5 cm

25 cm

P06

18

81.67 kg

80 cm

80 cm

60 cm

Green Premium product

Compliant
EU RoHS Declaration

Yes

Yes

China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information

Product Environmental Profile

End of Life Information

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

18 months
