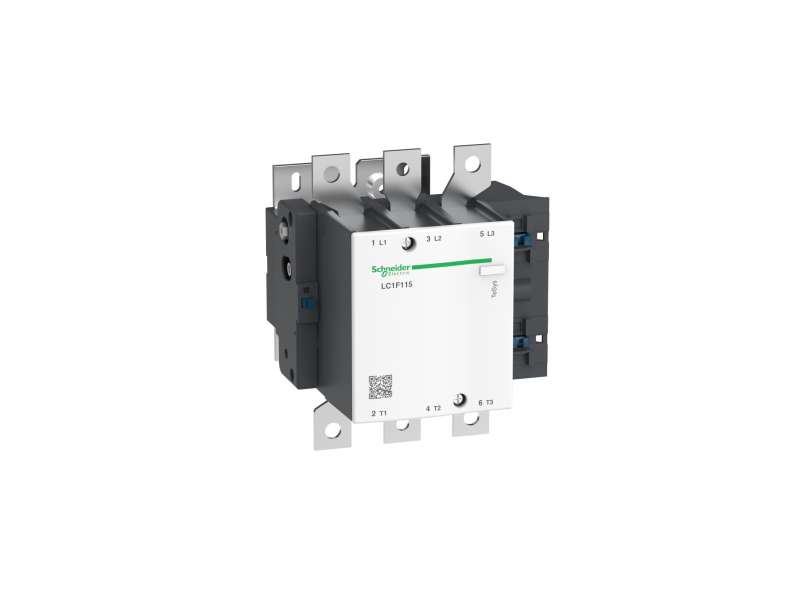

Schneider Electric TeSys F kontaktor - 3P(3 NO) - AC-3 - <= 440 V 115 A - bez kalema; LC1F115
TeSys F contactor - 3P(3 NO)-AC-3 <= 440V 115A with coil LX9 - 24...600V AC 40/400Hz, LX4 - 24...460V DC, LXE - 100...250V AC 50/60Hz or 100…380V DC...
VAT-exclusive price: 66.608,00 |
VAT-inclusive price: 79.929,60 |
TeSys F contactor - 3P(3 NO)-AC-3 <= 440V 115A with coil LX9 - 24...600V AC 40/400Hz, LX4 - 24...460V DC, LXE - 100...250V AC 50/60Hz or 100…380V DC
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys F
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1F
|
|
| contactor application |
Resistive load
Motor control |
|
| utilisation category |
AC-1
AC-4 AC-3 |
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| [Ue] rated operational voltage |
<= 690 V AC 50/60 Hz
|
|
| [Ie] rated operational current |
200 A (at <40 °C) at <= 440 V AC-1
115 A (at <55 °C) at <= 440 V AC-3 |
|
| motor power kW |
55 kW at 380...400 V AC 50/60 Hz (AC-3)
59 kW at 415 V AC 50/60 Hz (AC-3) 59 kW at 440 V AC 50/60 Hz (AC-3) 75 kW at 500 V AC 50/60 Hz (AC-3) 30 kW at 220...240 V AC 50/60 Hz (AC-3) 80 kW at 660...690 V AC 50/60 Hz (AC-3) 18.5 kW at 400 V AC 50/60 Hz (AC-4) |
| [Uc] control circuit voltage |
24...575 V AC 40...400 Hz with LX9 coil
24...460 V DC with LX4 coil 100...250 V AC 50/60 Hz with LXE coil 100...380 V DC with LXE coil |
|
|---|---|---|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
| overvoltage category |
III
|
|
| [Ith] conventional free air thermal current |
200 A (at 40 °C)
|
|
| Irms rated making capacity |
1150 A conforming to IEC 60947-4-1
|
|
| rated breaking capacity |
920 A conforming to IEC 60947-4-1
|
|
| [Icw] rated short-time withstand current |
1100 A 40 °C - 10 s
640 A 40 °C - 30 s 520 A 40 °C - 1 min 400 A 40 °C - 3 min 320 A 40 °C - 10 min |
|
| associated fuse rating |
125 A aM at <= 440 V
200 A gG at <= 440 V |
|
| average impedance |
0.37 mOhm - Ith 200 A 50 Hz
|
|
| [Ui] rated insulation voltage |
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C |
|
| power dissipation per pole |
15 W AC-1
5 W AC-3 |
|
| control circuit voltage limits |
Operational: 0.85...1.1 Uc AC 40...400 Hz with LX9 coil
Drop-out: 0.2...0.55 Uc AC 40...400 Hz with LX9 coil Operational: 0.85...1.1 Uc DC with LX4 coil Drop-out: 0.15...0.2 Uc DC with LX4 coil Operational: 85...275 V AC 50/60 Hz with LXE coil Drop-out: 0...60 V AC 50/60 Hz with LXE coil Operational: 85...418 V DC with LXE coil Drop-out: 0...45 V DC with LXE coil |
|
| heat dissipation |
5.9…7.2 W
2.2…5.5 W |
|
| operating time |
35 ms closing for with LX9 coil
130 ms opening for with LX9 coil 30...40 ms closing for with LX4 coil 30...50 ms opening for with LX4 coil 40...80 ms closing for with LXE coil 6...54 ms opening for with LXE coil |
|
| mounting support |
Plate
|
|
| standards |
EN 60947-1
JIS C8201-4-1 IEC 60947-4-1 EN 60947-4-1 IEC 60947-1 |
|
| product certifications |
RINA
ABS CSA DNV RMRoS BV LROS (Lloyds register of shipping) UL CB |
|
| connections - terminals |
Power circuit: lugs-ring terminals 1 cable(s) 95 mm²
Power circuit: connector 1 cable(s) 95 mm² Power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm Power circuit: bolted connection Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm² Control circuit: screw clamp terminals 2 cable(s) 1…4 mm² Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²flexible without cable end Control circuit: screw clamp terminals 1.0 cable(s) 0.25…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²solid without cable end |
|
| tightening torque |
Power circuit: 10 N.m
Control circuit: 1.2 N.m Control circuit: 0.6 N.m |
|
| mechanical durability |
10 Mcycles
|
|
| inrush power in VA |
590…855 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil
543…665 VA (at 20 °C)with LX4 coil 280…310 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil 270…320 VA (at 20 °C)with LXE coil |
|
| hold-in power consumption in VA |
6.6…8.1 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil
3.94…4.83 VA (at 20 °C)with LX4 coil 4.5…7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil 2.5…4.0 VA (at 20 °C)with LXE coil |
|
| maximum operating rate |
2400 cyc/h 55 °C
|
|
| compatibility code |
LC1F
|
| IP degree of protection |
IP2x front face with shrouds conforming to IEC 60529
IP2x front face with shrouds conforming to VDE 0106 |
|
|---|---|---|
| protective treatment |
TH
|
|
| ambient air temperature for operation |
-40…60 °C
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| permissible ambient air temperature around the device |
60…70 °C at Uc
|
|
| operating altitude |
3000 m without derating
|
|
| mechanical robustness |
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 6 Gn, 5...300 Hz Shocks contactor open: 9 Gn for 1/2 sine wave (11 ms) Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) |
|
| height |
162 mm
|
|
| width |
163.5 mm
|
|
| depth |
171 mm
|
|
| net weight |
3.83 kg
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
3.522 kg
|
|
| Package 1 Height |
18.4 cm
|
|
| Package 1 width |
19.8 cm
|
|
| Package 1 Length |
22.6 cm
|
|
| Unit Type of Package 2 |
CAR
|
|
| Number of Units in Package 2 |
1
|
|
| Package 2 Weight |
3.522 kg
|
|
| Package 2 Height |
22 cm
|
|
| Package 2 width |
20 cm
|
|
| Package 2 Length |
24.5 cm
|
|
| Unit Type of Package 3 |
P06
|
|
| Number of Units in Package 3 |
18
|
|
| Package 3 Weight |
72.148 kg
|
|
| Package 3 Height |
80 cm
|
|
| Package 3 width |
80 cm
|
|
| Package 3 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
