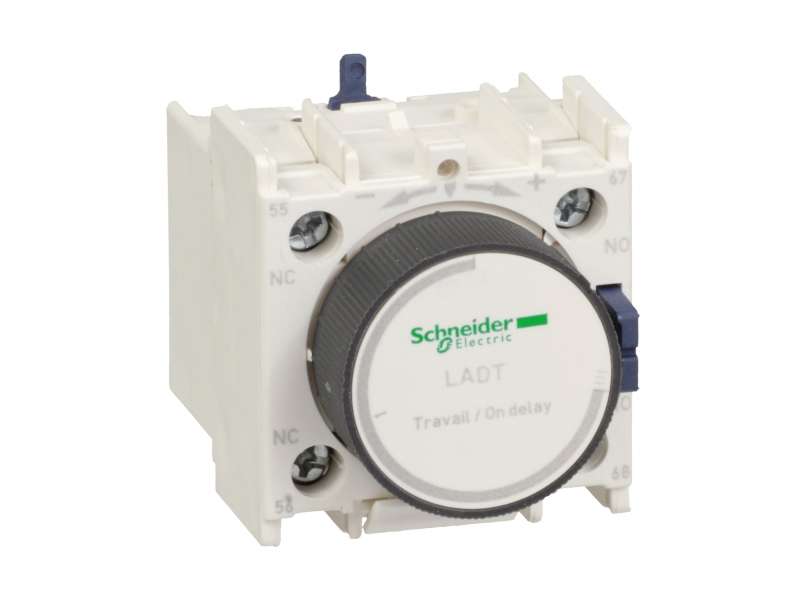

Schneider Electric TeSys D - vremenski pomoćni kontaktni blok - 1 NO + 1 NC vijčani priključak;LADT4
Time delay auxiliary contact block, TeSys D, 1NO + 1NC, on delay 10-180s, front, screw clamp terminals...
VAT-exclusive price: 10.092,00 |
VAT-inclusive price: 12.110,40 |
Time delay auxiliary contact block, TeSys D, 1NO + 1NC, on delay 10-180s, front, screw clamp terminals
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys D
|
|
| product or component type |
Time delay auxiliary contact block
|
|
| range compatibility |
TeSys D CAD
TeSys D LC1D TeSys F LC1F TeSys F CR1F |
|
| mounting location |
Front
|
|
| pole contact composition |
1 NO + 1 NC
|
|
| Contacts operation |
Time delay
|
|
| timer type |
On delay
|
|
| time delay range |
10...180 s
|
|
| [Ue] rated operational voltage |
690 V AC 25...400 Hz
|
|
| [Ie] rated operational current |
6 A at 120 V AC-15
1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 |
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-5-1
600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1 |
|
| [Ith] conventional free air thermal current |
10 A (at 60 °C)
|
|
| standards |
EN/IEC 60947-5-1
UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 |
|
| product certifications |
IECEE CB Scheme
UL CSA CCC EAC |
| Irms rated making capacity |
140 A at <= 690 V AC conforming to IEC 60947-5-1
250 A at <= 690 V DC conforming to IEC 60947-5-1 |
|
|---|---|---|
| permissible short-time rating |
100 A 60 °C 1 s
120 A 60 °C 500 ms 140 A 60 °C 100 ms |
|
| protection type |
GG fuse 10 A
|
|
| mechanical durability |
5 Mcycles
|
|
| minimum switching current |
5 mA
|
|
| minimum switching voltage |
17 V
|
|
| non-overlap time |
1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact |
|
| insulation resistance |
> 10 MOhm
|
|
| connections - terminals |
Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1…2.5 mm²rigid Screw clamp terminals 2 cable(s) 1…2.5 mm²rigid Screw clamp terminals |
|
| tightening torque |
1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2 |
|
| height |
48 mm
|
|
| width |
44 mm
|
|
| depth |
61 mm
|
| environmental characteristic |
Normal environment
|
|
|---|---|---|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| protective treatment |
TH conforming to IEC 60068
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| operating altitude |
3000 m
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
74 g
|
|
| Package 1 Height |
5 cm
|
|
| Package 1 width |
5.2 cm
|
|
| Package 1 Length |
6.5 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
|
-
TeSys D LADT4
