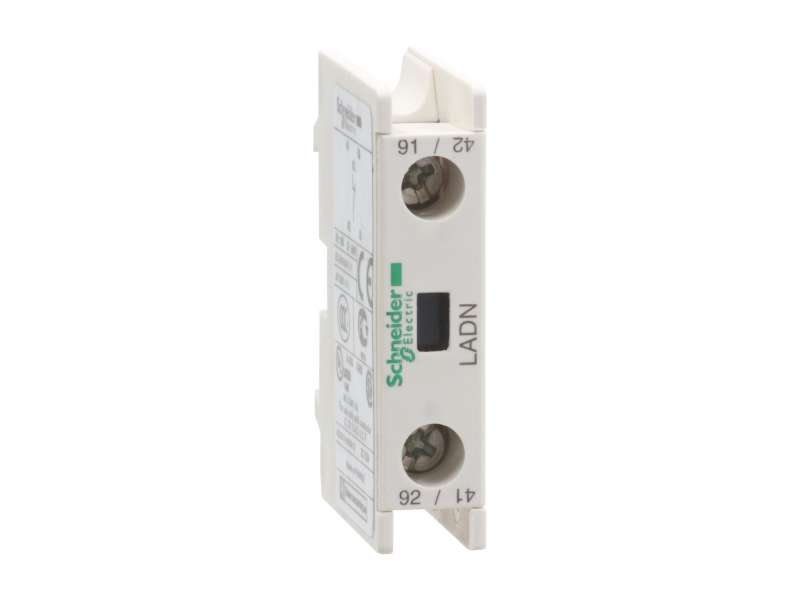

Schneider Electric TeSys D - pomoćni kontaktni blok - 1 NO - vijčani priključci; LADN10
Auxiliary contact block, TeSys D, 1NO, front mounting, screw terminals...
VAT-exclusive price: 1.017,00 |
VAT-inclusive price: 1.220,40 |
Auxiliary contact block, TeSys D, 1NO, front mounting, screw terminals
| range |
TeSys
|
|
|---|---|---|
| range of product |
TeSys D
|
|
| device short name |
LADN
|
|
| product or component type |
Auxiliary contact block
|
|
| range compatibility |
TeSys D CAD
TeSys D LC1D TeSys F LC1F TeSys F CR1F |
|
| mounting location |
Front
|
|
| pole contact composition |
1 NO
|
|
| Contacts operation |
Instantaneous
|
|
| [Ue] rated operational voltage |
690 V AC 25...400 Hz
|
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-5-1
600 V - certifications CSA 600 V - certifications UL |
|
| [Ith] conventional free air thermal current |
10 A (at 60 °C)
|
|
| standards |
EN/IEC 60947-5-1
UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 |
|
| product certifications |
IECEE CB Scheme
UL CSA CCC EAC |
| Irms rated making capacity |
140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1 |
|
|---|---|---|
| permissible short-time rating |
100 A 60 °C 1 s
120 A 60 °C 500 ms 140 A 60 °C 100 ms |
|
| protection type |
GG fuse 10 A
|
|
| mechanical durability |
30 Mcycles
|
|
| minimum switching current |
5 mA
|
|
| minimum switching voltage |
17 V
|
|
| non-overlap time |
1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact |
|
| insulation resistance |
> 10 MOhm
|
|
| connections - terminals |
Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1…2.5 mm²solid Screw clamp terminals 2 cable(s) 1…2.5 mm²solid |
|
| tightening torque |
1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2 |
|
| height |
48 mm
|
|
| width |
13 mm
|
|
| depth |
35 mm
|
|
| net weight |
0.02 kg
|
| environmental characteristic |
Normal environment
|
|
|---|---|---|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| protective treatment |
TH conforming to IEC 60068
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| ambient air temperature for operation |
-5…60 °C
|
|
| operating altitude |
3000 m
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
19 g
|
|
| Package 1 Height |
2.7 cm
|
|
| Package 1 width |
4.2 cm
|
|
| Package 1 Length |
5 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
84
|
|
| Package 2 Weight |
1.77 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
TeSys D LADN10
