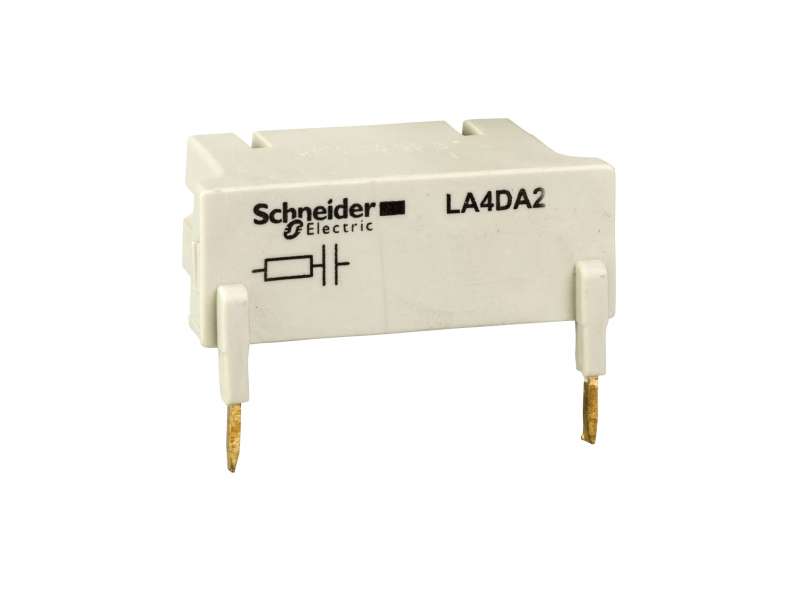

Schneider Electric TeSys D - modul za prigušenje - RC kolo - 380...415 V AC 150 Hz;LA4DA2N
TeSys D - suppressor module - RC circuit - 380...415 V AC 150 Hz...
VAT-exclusive price: 2.439,00 |
VAT-inclusive price: 2.926,80 |
TeSys D - suppressor module - RC circuit - 380...415 V AC 150 Hz
| range |
TeSys
|
|
|---|---|---|
| device short name |
LA4D
|
|
| product or component type |
Suppressor module
|
|
| product compatibility |
3P LC1D80...D150
4P LC1D80004...D115004 4P LC1D40008...D80008 |
| mounting location |
Top
|
|
|---|---|---|
| mounting mode |
By screws
|
|
| suppressor technology |
RC circuit
|
|
| [Uc] control circuit voltage |
380...415 V AC 50/60 Hz
|
|
| maximum peak voltage |
3 Uc
|
|
| net weight |
0.018 kg
|
| ambient air temperature for operation |
-25…55 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-40…80 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
22 g
|
|
| Package 1 Height |
2.8 cm
|
|
| Package 1 width |
4.2 cm
|
|
| Package 1 Length |
5 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
78
|
|
| Package 2 Weight |
1.878 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
TeSys D LA4DA2N
