Schneider Electric TeSys D - modul za prigušenje - ograničenje diodom u oba smera - 25…72 V AC/DC;LAD4T3S
TeSys D - suppressor module - bidirectional peak limiting diode - 25…72 V AC/DC...
VAT-exclusive price: 2.635,00 |
VAT-inclusive price: 3.162,00 |
TeSys D - suppressor module - bidirectional peak limiting diode - 25…72 V AC/DC
| range |
TeSys
|
|
|---|---|---|
| device short name |
LAD4
|
|
| product or component type |
Suppressor module
|
|
| product compatibility |
3P LC1D40A...D80A
4P LC1DT60A...DT80A |
| mounting location |
Front
|
|
|---|---|---|
| mounting mode |
By clips
|
|
| suppressor technology |
Bidirectional peak limiting diode
|
|
| [Uc] control circuit voltage |
25...72 V DC
25...72 V AC 50/60 Hz |
|
| maximum peak voltage |
2 Uc
|
|
| net weight |
0.02 kg
|
| ambient air temperature for operation |
-25…55 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-40…80 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
19 g
|
|
| Package 1 Height |
2 cm
|
|
| Package 1 width |
3 cm
|
|
| Package 1 Length |
5 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-

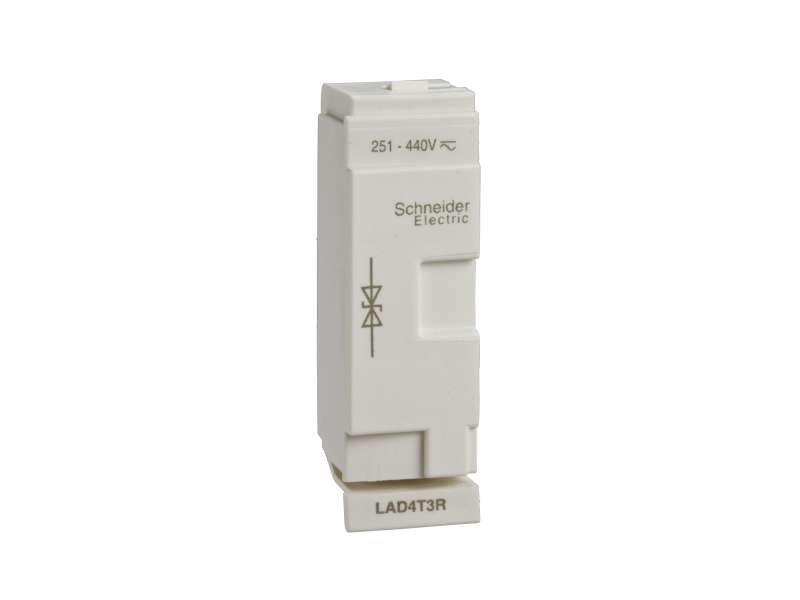

TeSys D LAD4T3R
