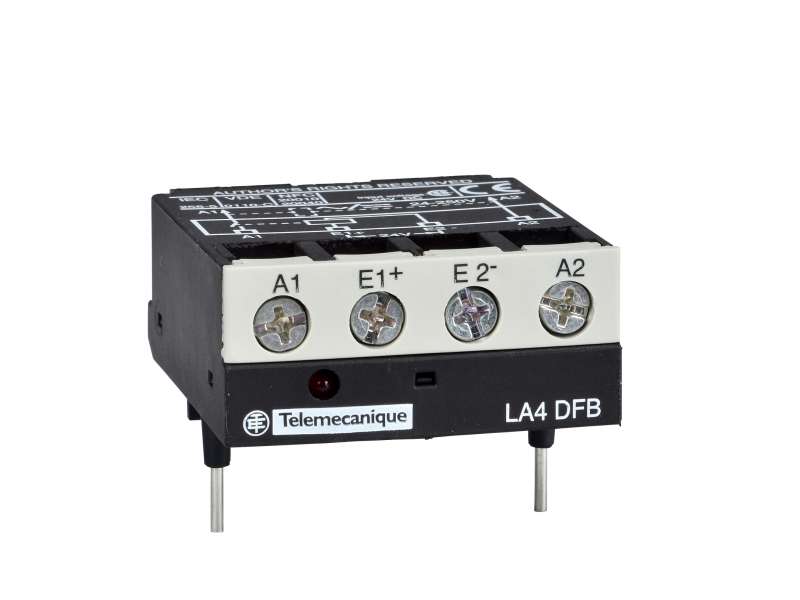

Schneider Electric TeSys D - interfejs modul - relej - 24 V DC / 250 V AC;LA4DFB
TeSys D - interface amplifier module - relay - 24 V DC / 250 V AC...
VAT-exclusive price: 6.441,00 |
VAT-inclusive price: 7.729,20 |
TeSys D - interface amplifier module - relay - 24 V DC / 250 V AC
| range |
TeSys
|
|
|---|---|---|
| device short name |
LA4D
|
|
| poles description |
3P
|
|
| product or component type |
Interface module
|
|
| product compatibility |
LC1D09...D150
|
| mounting mode |
Top mounted
|
|
|---|---|---|
| technology type |
Electromechanical
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| control circuit voltage limits |
17...30 V at 20 °C DC
|
|
| [Ui] rated insulation voltage |
250 V - for control circuit conforming to IEC 60947-5-1
|
|
| connections - terminals |
Control circuit: connector 1 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: connector 1 cable(s) 1…2.5 mm²flexible without cable end Control circuit: connector 1 cable(s) 1…2.5 mm²solid with cable end Control circuit: connector 1 cable(s) 1…2.5 mm²solid without cable end Control circuit: connector 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: connector 2 cable(s) 1…2.5 mm²flexible without cable end Control circuit: connector 2 cable(s) 1…2.5 mm²solid with cable end Control circuit: connector 2 cable(s) 1…2.5 mm²solid without cable end |
|
| [Ue] rated operational voltage |
Control circuit: 24...250 V AC
|
|
| current consumption |
25 mA 20 °C
|
|
| current state 0 guaranteed |
<= 2 mA
|
|
| voltage state 0 guaranteed |
< 2.4 V
|
|
| voltage state 1 guaranteed |
17 V
|
|
| electrical durability |
10 Mcycles at 240 V
|
|
| local signalling |
LED indicator
|
|
| height |
12 mm
|
|
| net weight |
0.05 kg
|
| standards |
IEC 60255-5
|
|
|---|---|---|
| product certifications |
UL
CSA |
|
| protection type |
Built-in by diode
|
|
| IP degree of protection |
IP2x conforming to VDE 0106
|
|
| protective treatment |
TH conforming to IEC 60068
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| permissible ambient air temperature around the device |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| heat dissipation |
0.6 W for control circuit
|
|
| immunity to microbreaks |
4 ms
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
49 g
|
|
| Package 1 Height |
4.4 cm
|
|
| Package 1 width |
5 cm
|
|
| Package 1 Length |
5.5 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
105
|
|
| Package 2 Weight |
5.6 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
|---|
-
TeSys D LA4DFB
