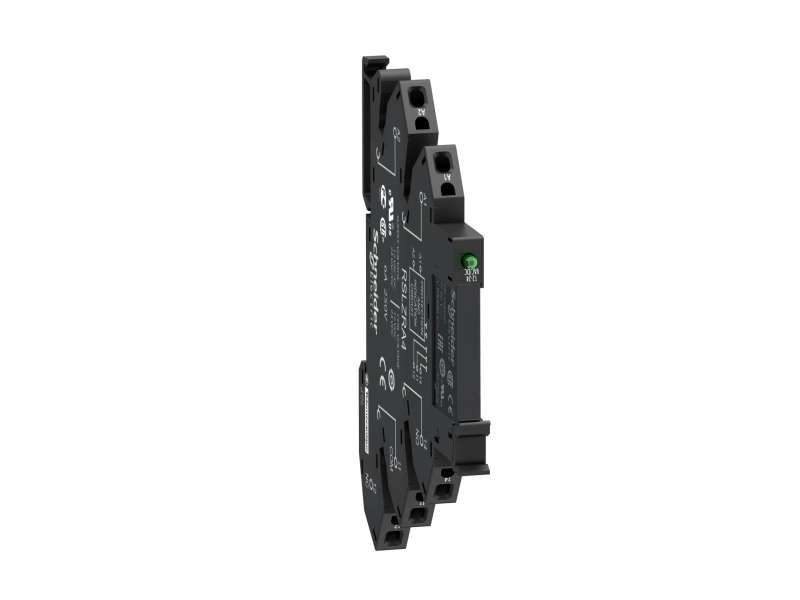

Schneider Electric Tanki relej montiran na opružno podnožje sa LED lampicom i zaštitnim kolom,230 V ; RSL1PRPU
Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 230 V AC...
VAT-exclusive price: 2.414,00 |
VAT-inclusive price: 2.896,80 |
Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 230 V AC
| range of product |
Zelio Relay
|
|
|---|---|---|
| series name |
Interface relay
|
|
| product or component type |
Plug-in relay
|
|
| device short name |
RSL
|
|
| contacts type and composition |
1 C/O
|
|
| contact operation |
Standard
|
|
| [Uc] control circuit voltage |
60 V DC
|
|
| [Ithe] conventional enclosed thermal current |
6 A at -40…55 °C
|
|
| status LED |
With
|
|
| shape of pin |
Flat (PCB type)
|
| fixing mode |
Plastic compression spring
|
|
|---|---|---|
| average resistance |
20500 Ohm network: DC at 23 °C +/- 10 %
|
|
| [Ui] rated insulation voltage |
250 V conforming to EN/IEC
277 V conforming to cUL |
|
| [Uimp] rated impulse withstand voltage |
6 kV IEC
|
|
| contacts material |
Silver alloy (AgSnO2)
|
|
| [Ie] rated operational current |
6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL
|
|
| minimum switching current |
100 mA
|
|
| maximum switching voltage |
277 V
|
|
| switching voltage |
12 V
|
|
| maximum switching capacity |
1500 VA
150 W |
|
| minimum switching capacity |
120 mW
|
|
| operating rate |
<= 72000 cycles/hour no-load
<= 360 cycles/hour under load |
|
| mechanical durability |
10000000 cycles
|
|
| electrical durability |
60000 cycles for resistive load, 6 A at 250 V, AC-1
|
|
| operating time |
5 ms reset
12 ms |
|
| reset time |
20 ms
|
|
| marking |
CE
|
|
| protection category |
RT III
|
|
| test levels |
Level A group mounting
|
|
| operating position |
Any position
|
|
| height |
78.6 mm
|
|
| width |
6.2 mm
|
|
| depth |
101 mm
|
|
| terminals description ISO n°1 |
(A1-A2)CO
(11-12-14)OC |
|
| sale per indivisible quantity |
10
|
|
| net weight |
0.029 kg
|
|
| load current |
6 A at 250 V AC 0.5 mm mounting distance
|
|
| average coil consumption |
0.17 W, DC
|
|
| drop-out voltage threshold |
>= 0.05 Uc
|
|
| contact terminal arrangement |
Separate
|
|
| connections - terminals |
Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end |
|
| tightening torque |
10...40 N.m
|
|
| safety reliability data |
B10d = 60000
|
|
| clamping force |
10…40 N
|
|
| control type |
Without push-button
|
|
| mounting support |
35 mm symmetrical DIN rail
|
|
| device presentation |
Complete product
|
| input voltage |
230 V AC/DC (input voltage limit: 184...264.5 V)
|
|
|---|---|---|
| dielectric strength |
1000 V AC between contacts
4000 V AC between coil and contact |
|
| standards |
CSA C22.2 No 14
EN/IEC 61810-1 UL 508 |
|
| product certifications |
GOST
CSA UL |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to EN/IEC 60068-2-6
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to EN/IEC 60068-2-6 |
|
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
|
| shock resistance |
10 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27
5 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27 |
|
| ambient air temperature for operation |
-40…70 °C
|
| Package 1 Weight |
31 g
|
|
|---|---|---|
| Package 2 Weight |
312 g
|
|
| Package 3 Weight |
9.832 kg
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
