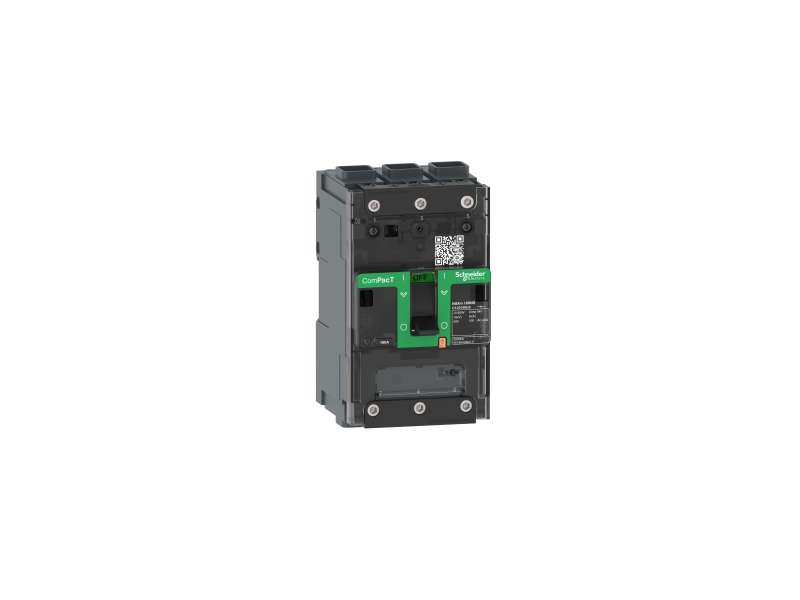

Schneider Electric Switch disconnector, ComPacT NSXm 50NA, 3 poles, thermal current Ith 50A, EverLink lugs;C113050LS
Switch disconnector, ComPacT NSXm 50NA, 3 poles, thermal current Ith 50A, EverLink lugs...
VAT-exclusive price: 16.902,00 |
VAT-inclusive price: 20.282,40 |
Switch disconnector, ComPacT NSXm 50NA, 3 poles, thermal current Ith 50A, EverLink lugs
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSXm new generation |
| product or component type | Switch disconnector |
| device short name | NSXm 100NA |
| poles description | 3P |
| network type | AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ie] rated operational current |
AC-23: 50 A AC 50/60 Hz AC-22: 50 A AC 50/60 Hz |
| [Ui] rated insulation voltage | 800 V conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Icm] rated short-circuit making capacity | 1.28 kA |
| breaking capacity code | NA |
| suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| contact position indicator | Yes |
| utilisation category | Category A |
| control type | Toggle |
|---|---|
| mounting mode |
Clip-on By screws |
| mounting support |
35 mm symmetrical DIN rail Plate |
| [Icw] rated short-time withstand current | 0.9 kA during 3 s conforming to IEC 60947-3 |
| mechanical durability | 20000 cycles In conforming to IEC 60947-3 |
| electrical durability |
AC-22A: 20000 cycles 440 V AC 50/60 Hz Ie/2 conforming to IEC 60947-3 AC-23A: 20000 cycles 440 V AC 50/60 Hz Ie/2 conforming to IEC 60947-3 AC-22A: 10000 cycles 440 V AC 50/60 Hz Ie conforming to IEC 60947-3 AC-23A: 10000 cycles 440 V AC 50/60 Hz Ie conforming to IEC 60947-3 AC-22A: 10000 cycles 690 V AC 50/60 Hz Ie/2 conforming to IEC 60947-3 AC-23A: 6000 cycles 690 V AC 50/60 Hz Ie/2 conforming to IEC 60947-3 AC-22A: 5000 cycles 690 V AC 50/60 Hz Ie conforming to IEC 60947-3 AC-23A: 3000 cycles 690 V AC 50/60 Hz Ie conforming to IEC 60947-3 |
| height | 137 mm |
| width | 81 mm |
| depth | 80 mm |
| net weight | 1.06 kg |
| connections - terminals |
1 Everlink lug wire size 2.5…70 mm², flexible copper 1 Everlink lug wire size 2.5…95 mm², rigid or stranded aluminium/copper |
| standards | EN/IEC 60947 |
|---|---|
| product certifications |
EAC CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| pollution degree | 3 conforming to IEC 60664-1 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.19 kg |
| Package 1 Height | 12.0 cm |
| Package 1 width | 9.0 cm |
| Package 1 Length | 21.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 9 |
| Package 2 Weight | 11.104 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
