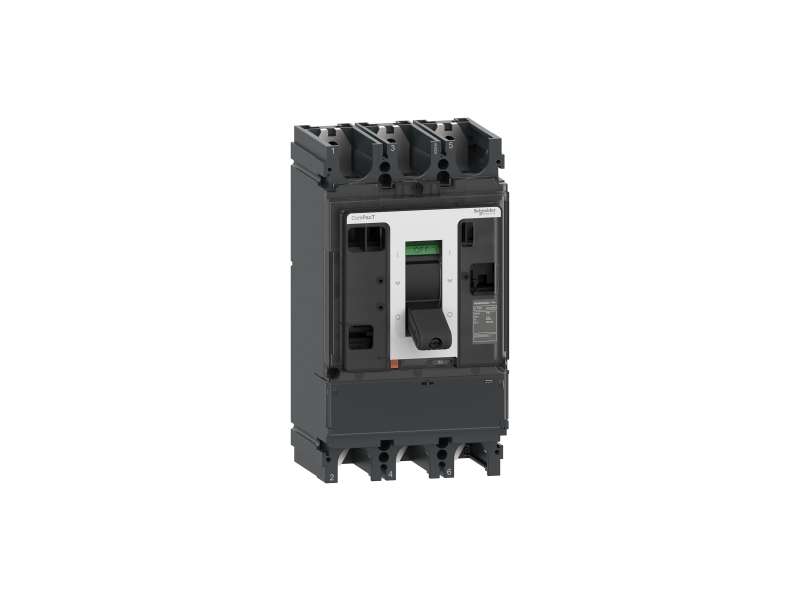

Schneider Electric Switch disconnector, ComPacT NSX630NA DC, 3 poles, thermal current Ith 630A;C633630DS
Switch disconnector, ComPacT NSX630NA DC, 3 poles, thermal current Ith 630A...
VAT-exclusive price: 162.236,00 |
VAT-inclusive price: 194.683,20 |
Switch disconnector, ComPacT NSX630NA DC, 3 poles, thermal current Ith 630A
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSX DC new generation |
| product or component type | Switch disconnector |
| device short name | NSX630NA DC |
| poles description | 3P |
| network type | DC |
| [Ue] rated operational voltage | 750 V DC conforming to IEC 60947-3 |
| [Ie] rated operational current | DC-22A: 630 A DC 750 V |
| [Ui] rated insulation voltage | 750 V DC conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 630 A |
| [Icm] rated short-circuit making capacity | 7.5 kA switch-disconnector alone |
| breaking capacity code | NA |
| suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| contact position indicator | Yes |
| visible break | No |
| utilisation category | DC-22A |
| control type | Toggle |
|---|---|
| mounting mode | Fixed |
| upside connection | Front |
| downside connection | Front |
| [Icw] rated short-time withstand current | 7.5 kA during 1 s conforming to IEC 60947-3 |
| mechanical durability | 5000 cycles conforming to IEC 60947-3 |
| electrical durability | 1000 cycles 750 V DC In conforming to IEC 60947-3 |
| connection pitch | 45 mm |
| height | 255 mm |
| width | 140 mm |
| depth | 110 mm |
| net weight | 6 kg |
| compatibility code | NSX630 |
| standards |
EN/IEC 60947 UL 508 |
|---|---|
| product certifications |
EAC CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| electrical shock protection class | Class II |
| pollution degree | 3 conforming to IEC 60664-1 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 5.35 kg |
| Package 1 Height | 14.7 cm |
| Package 1 width | 20.0 cm |
| Package 1 Length | 29.1 cm |
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSX DC new generation |
| product or component type | Switch disconnector |
| device short name | NSX630NA DC |
| poles description | 3P |
| network type | DC |
| [Ue] rated operational voltage | 750 V DC conforming to IEC 60947-3 |
| [Ie] rated operational current | DC-22A: 630 A DC 750 V |
| [Ui] rated insulation voltage | 750 V DC conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 630 A |
| [Icm] rated short-circuit making capacity | 7.5 kA switch-disconnector alone |
| breaking capacity code | NA |
| suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| contact position indicator | Yes |
| visible break | No |
| utilisation category | DC-22A |
| control type | Toggle |
|---|---|
| mounting mode | Fixed |
| upside connection | Front |
| downside connection | Front |
| [Icw] rated short-time withstand current | 7.5 kA during 1 s conforming to IEC 60947-3 |
| mechanical durability | 5000 cycles conforming to IEC 60947-3 |
| electrical durability | 1000 cycles 750 V DC In conforming to IEC 60947-3 |
| connection pitch | 45 mm |
| height | 255 mm |
| width | 140 mm |
| depth | 110 mm |
| net weight | 6 kg |
| compatibility code | NSX630 |
| standards |
EN/IEC 60947 UL 508 |
|---|---|
| product certifications |
EAC CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| electrical shock protection class | Class II |
| pollution degree | 3 conforming to IEC 60664-1 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 5.35 kg |
| Package 1 Height | 14.7 cm |
| Package 1 width | 20.0 cm |
| Package 1 Length | 29.1 cm |
