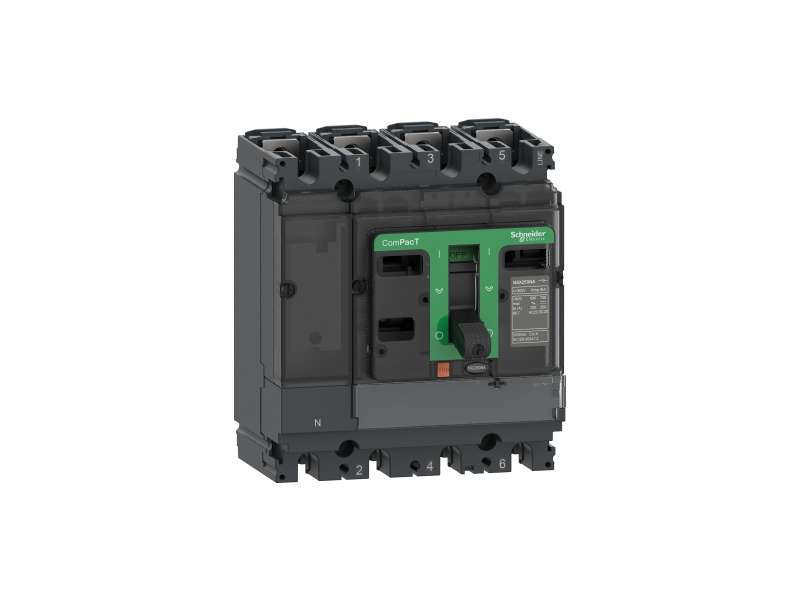

Schneider Electric Switch disconnector, ComPacT NSX630NA, 3 poles, thermal current Ith 630A;C633630S

Schneider Electric Switch disconnector, ComPacT NSX630NA, 3 poles, thermal current Ith 630A;C633630S

Switch disconnector, ComPacT NSX400NA, 4 poles, thermal current Ith 400A...

Brand: Schneider Electric
Product Code: C633630S
Availability: Check availability
VAT-exclusive price: 109.221,00
VAT-inclusive price: 131.065,20

Switch disconnector, ComPacT NSX400NA, 4 poles, thermal current Ith 400A


Main
range ComPacT new generation
product name ComPacT NSX new generation
product or component type Switch disconnector
device short name NSX400NA
poles description 4P
network type AC
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
[Ie] rated operational current AC-22A: 400 A AC 50/60 Hz 220...690 V
AC-23A: 400 A AC 50/60 Hz 220...690 V
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current 400 A at 60 °C
[Icm] rated short-circuit making capacity 330 kA with upstream protection circuit breaker
7.1 kA switch-disconnector alone
breaking capacity code NA
suitability for isolation Yes conforming to EN/IEC 60947-3
contact position indicator Yes
visible break No
utilisation category AC-22A
AC-23A
Complementary
control type Toggle
mounting mode Fixed
mounting support Backplate
upside connection Front
downside connection Front
[Icw] rated short-time withstand current 1.93 kA during 20 s conforming to IEC 60947-3
5 kA during 1 s conforming to IEC 60947-3
5 kA during 3 s conforming to IEC 60947-3
mechanical durability 15000 cycles conforming to IEC 60947-3
electrical durability AC-22A: 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3
AC-22A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3
AC-22A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3
AC-22A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3
AC-23A: 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3
AC-23A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3
AC-23A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3
AC-23A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3
connection pitch 45 mm
height 255 mm
width 185 mm
depth 110 mm
net weight 6.8 kg
compatibility code NSX400
Environment
standards EN/IEC 60947
UL 508
product certifications EAC
CCC
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
electrical shock protection class Class II
pollution degree 3 conforming to IEC 60664-1
ambient air temperature for operation -25…70 °C
ambient air temperature for storage -50…85 °C

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 7.028 kg
Package 1 Height 14.7 cm
Package 1 width 20.2 cm
Package 1 Length 29.0 cm
Unit Type of Package 2 S04
Number of Units in Package 2 2
Package 2 Weight 14.694 kg
Package 2 Height 30.0 cm
Package 2 width 40.0 cm
Package 2 Length 60.0 cm
Package 3 Height 50 cm

Main
range ComPacT new generation
product name ComPacT NSX new generation
product or component type Switch disconnector
device short name NSX400NA
poles description 4P
network type AC
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
[Ie] rated operational current AC-22A: 400 A AC 50/60 Hz 220...690 V
AC-23A: 400 A AC 50/60 Hz 220...690 V
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current 400 A at 60 °C
[Icm] rated short-circuit making capacity 330 kA with upstream protection circuit breaker
7.1 kA switch-disconnector alone
breaking capacity code NA
suitability for isolation Yes conforming to EN/IEC 60947-3
contact position indicator Yes
visible break No
utilisation category AC-22A
AC-23A
Complementary
control type Toggle
mounting mode Fixed
mounting support Backplate
upside connection Front
downside connection Front
[Icw] rated short-time withstand current 1.93 kA during 20 s conforming to IEC 60947-3
5 kA during 1 s conforming to IEC 60947-3
5 kA during 3 s conforming to IEC 60947-3
mechanical durability 15000 cycles conforming to IEC 60947-3
electrical durability AC-22A: 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3
AC-22A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3
AC-22A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3
AC-22A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3
AC-23A: 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3
AC-23A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3
AC-23A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3
AC-23A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3
connection pitch 45 mm
height 255 mm
width 185 mm
depth 110 mm
net weight 6.8 kg
compatibility code NSX400
Environment
standards EN/IEC 60947
UL 508
product certifications EAC
CCC
IP degree of protection
