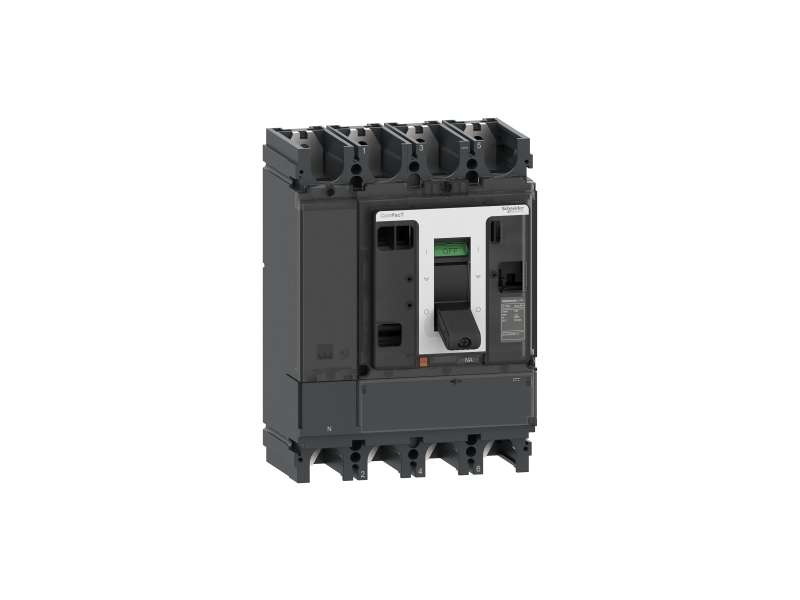

Schneider Electric Switch disconnector, ComPacT NSX400NA DC, 4 poles, thermal current Ith 400A;C404400DS

Switch disconnector, ComPacT NSX400NA DC, 4 poles, thermal current Ith 400A...

Brand: Schneider Electric
Product Code: C404400DS
Availability: Check availability

VAT-exclusive price: 93.565,00

VAT-inclusive price: 112.278,00

Qnt:

Description
Specification

Switch disconnector, ComPacT NSX400NA DC, 4 poles, thermal current Ith 400A

Main
range	ComPacT new generation
product name	ComPacT NSX DC new generation
product or component type	Switch disconnector
device short name	NSX400NA DC
poles description	4P
network type	DC
[Ue] rated operational voltage	750 V DC conforming to IEC 60947-3
[Ie] rated operational current	DC-22A: 400 A DC 750 V
[Ui] rated insulation voltage	750 V DC conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current	400 A
[Icm] rated short-circuit making capacity	7.5 kA switch-disconnector alone
breaking capacity code	NA
suitability for isolation	Yes conforming to EN/IEC 60947-3
contact position indicator	Yes
visible break	No
utilisation category	DC-22A

Complementary
control type	Toggle
mounting mode	Fixed
upside connection	Front
downside connection	Front
[Icw] rated short-time withstand current	7.5 kA during 1 s conforming to IEC 60947-3
mechanical durability	5000 cycles conforming to IEC 60947-3
electrical durability	1000 cycles 750 V DC In conforming to IEC 60947-3
connection pitch	45 mm
height	255 mm
width	185 mm
depth	110 mm
net weight	7.8 kg
compatibility code	NSX400

Environment
standards	EN/IEC 60947 UL 508
product certifications	EAC CCC
IP degree of protection	IP40 conforming to IEC 60529
IK degree of protection	IK07 conforming to IEC 62262
electrical shock protection class	Class II
pollution degree	3 conforming to IEC 60664-1
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	7.286 kg
Package 1 Height	14.7 cm
Package 1 width	20.0 cm
Package 1 Length	29.1 cm
