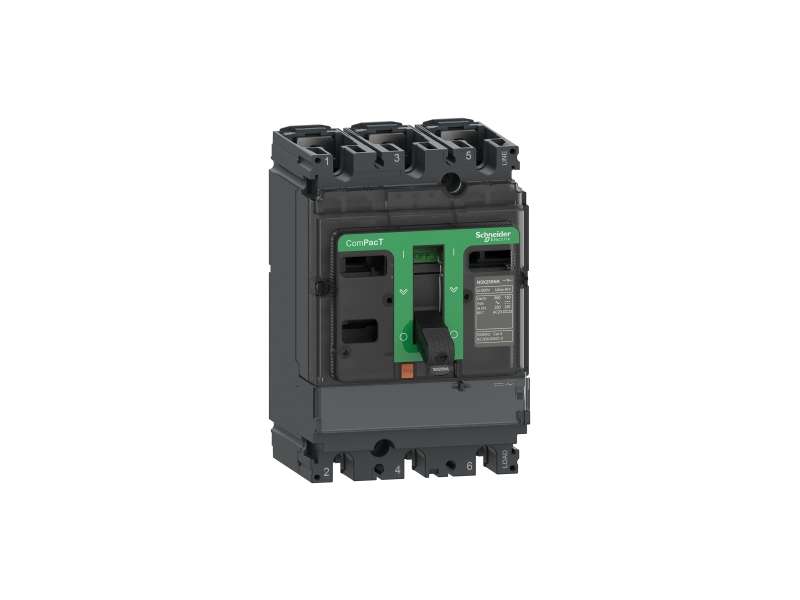

Switch disconnector, ComPacT NSX400NA, 3 poles, thermal current Ith 400A
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSX new generation |
| product or component type | Switch disconnector |
| device short name | NSX400NA |
| poles description | 3P |
| network type | AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Ie] rated operational current |
AC-22A: 400 A AC 50/60 Hz 220...690 V AC-23A: 400 A AC 50/60 Hz 220...690 V |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 400 A at 60 °C |
| [Icm] rated short-circuit making capacity |
330 kA with upstream protection circuit breaker 7.1 kA switch-disconnector alone |
| breaking capacity code | NA |
| suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| contact position indicator | Yes |
| visible break | No |
| utilisation category |
AC-22A AC-23A |
| control type | Toggle |
|---|---|
| mounting mode | Fixed |
| mounting support | Backplate |
| upside connection | Front |
| downside connection | Front |
| [Icw] rated short-time withstand current |
1.93 kA during 20 s conforming to IEC 60947-3 5 kA during 1 s conforming to IEC 60947-3 5 kA during 3 s conforming to IEC 60947-3 |
| mechanical durability | 15000 cycles conforming to IEC 60947-3 |
| electrical durability |
AC-22A: 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-22A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3 AC-22A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3 AC-22A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-23A: 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-23A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3 AC-23A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3 AC-23A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3 |
| connection pitch | 45 mm |
| height | 255 mm |
| width | 140 mm |
| depth | 110 mm |
| net weight | 5.2 kg |
| compatibility code | NSX400 |
| standards |
EN/IEC 60947 UL 508 |
|---|---|
| product certifications |
EAC CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| electrical shock protection class | Class II |
| pollution degree | 3 conforming to IEC 60664-1 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 5.333 kg |
| Package 1 Height | 15.0 cm |
| Package 1 width | 16.0 cm |
| Package 1 Length | 29.5 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 2 |
| Package 2 Weight | 11.369 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSX new generation |
| product or component type | Switch disconnector |
| device short name | NSX400NA |
| poles description | 3P |
| network type | AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Ie] rated operational current |
AC-22A: 400 A AC 50/60 Hz 220...690 V AC-23A: 400 A AC 50/60 Hz 220...690 V |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 400 A at 60 °C |
| [Icm] rated short-circuit making capacity |
330 kA with upstream protection circuit breaker 7.1 kA switch-disconnector alone |
| breaking capacity code | NA |
| suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| contact position indicator | Yes |
| visible break | No |
| utilisation category |
AC-22A AC-23A |
| control type | Toggle |
|---|---|
| mounting mode | Fixed |
| mounting support | Backplate |
| upside connection | Front |
| downside connection | Front |
| [Icw] rated short-time withstand current |
1.93 kA during 20 s conforming to IEC 60947-3 5 kA during 1 s conforming to IEC 60947-3 5 kA during 3 s conforming to IEC 60947-3 |
| mechanical durability | 15000 cycles conforming to IEC 60947-3 |
| electrical durability |
AC-22A: 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-22A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3 AC-22A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3 AC-22A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-23A: 10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-23A: 2500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3 AC-23A: 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3 AC-23A: 5000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3 |
| connection pitch | 45 mm |
| height | 255 mm |
| width | 140 mm |
| depth | 110 mm |
| net weight | 5.2 kg |
| compatibility code | NSX400 |
| standards |
EN/IEC 60947 UL 508 |
|---|---|
| product certifications |
EAC CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| electrical shock protection class | Class II |
| pollution degree |
