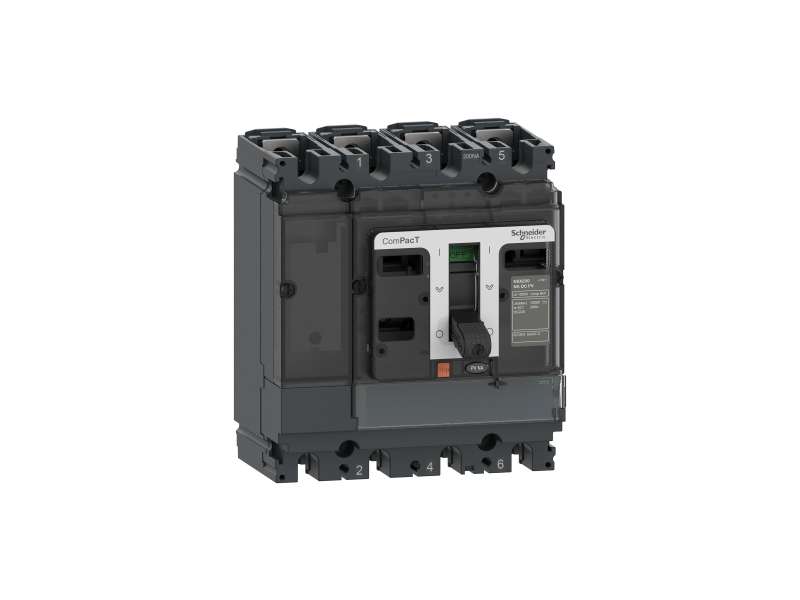

Schneider Electric Switch disconnector, ComPacT NSX160NA DC PV, 160A rating, 4 poles;C164160D1S
Switch disconnector, ComPacT NSX160NA DC PV, 160A rating, 4 poles...
VAT-exclusive price: 60.243,35 |
VAT-inclusive price: 72.292,02 |
Switch disconnector, ComPacT NSX160NA DC PV, 160A rating, 4 poles
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSX DC new generation |
| product or component type | Switch disconnector |
| device short name | NSX160NA DC PV |
| poles description | 4P |
| network type | DC |
| [Ue] rated operational voltage | 1000 V DC conforming to IEC 60947-3 |
| [Ie] rated operational current | DC-22A: 160 A DC 1000 V |
| [Ui] rated insulation voltage | 1000 V DC conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Ith] conventional free air thermal current | 120 A at 65 °C |
| [Icm] rated short-circuit making capacity | 2.5 kA switch-disconnector alone |
| breaking capacity code | NA |
| suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| contact position indicator | Yes |
| visible break | No |
| utilisation category | DC-22A |
| control type | Toggle |
|---|---|
| mounting mode | Fixed |
| upside connection | Front |
| downside connection | Front |
| [Icw] rated short-time withstand current | 2.5 kA during 1 s conforming to IEC 60947-3 |
| mechanical durability | 10000 cycles conforming to IEC 60947-3 |
| electrical durability | 1000 cycles 1000 V DC In conforming to IEC 60947-3 |
| connection pitch | 35 mm |
| height | 161 mm |
| width | 140 mm |
| depth | 86 mm |
| net weight | 2.8 kg |
| compatibility code | NSX160 |
| standards |
EN/IEC 60947 UL 508 |
|---|---|
| product certifications |
EAC CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| pollution degree | 3 conforming to IEC 60664-1 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.607 kg |
| Package 1 Height | 13.8 cm |
| Package 1 width | 14.8 cm |
| Package 1 Length | 19.0 cm |
