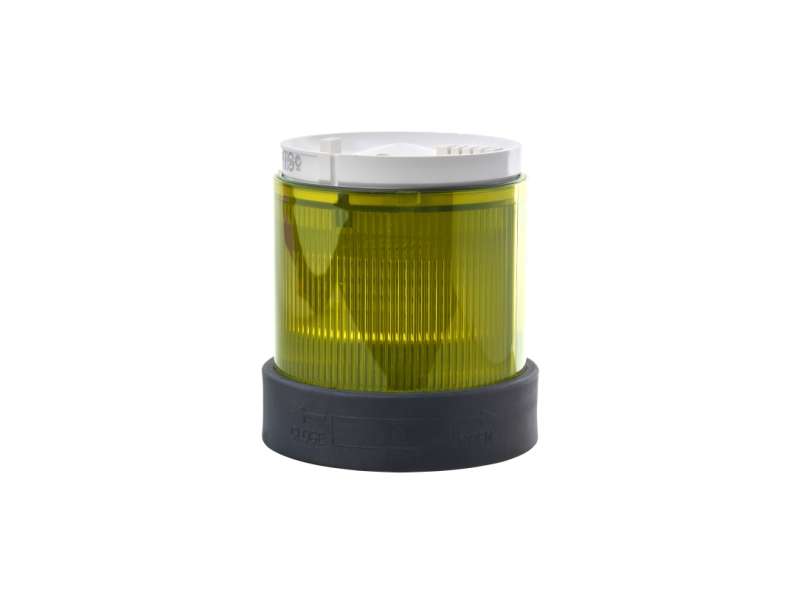

Schneider Electric Svetlosni blok žuti 250V 10W + opcije;XVBC38

Harmony XVB, Illuminated unit for modular tower lights, plastic, yellow, Ø70, steady, bulb or LED not included, 250 V...

Brand: Schneider Electric
Product Code: XVBC38
Availability: Check availability

VAT-exclusive price: 4.652,00

VAT-inclusive price: 5.582,40

Qnt:

Description
Specification

Harmony XVB, Illuminated unit for modular tower lights, plastic, yellow, Ø70, steady, bulb or LED not included, 250 V

Main
range of product	Harmony XVB Universal
product or component type	Indicator bank
beacon or indicator bank unit type	Illuminated unit
signalling type	Steady
mounting diameter	70 mm
component name	XVBC
material	Polycarbonate
light source	Bulb not included, yellow
bulb type	Incandescent with BA 15d base Protected LED
[Us] rated supply voltage	<= 250 V

Complementary
assembly style	Customer assembly, up to 5 units
maximum power dissipation in W	7 W
connections - terminals	Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage	250 V conforming to IEC 60947-1
nominal voltage limit	0.85...1.1 Un conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-1
CAD overall width	70 mm
CAD overall height	63 mm
CAD overall depth	70 mm

Environment
pollution degree	2
product certifications	CCC EAC CSA C22-2 No 14 UL 508
standards	EN/IEC 60947-5-1
protective treatment	TC
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…50 °C: LED -25…70 °C: incandescent
electrical shock protection class	Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140
IP degree of protection	IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529
NEMA degree of protection	Type 4X conforming to UL (indoor)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	136.0 g
Package 1 Height	9.3 cm
Package 1 width	8.0 cm
Package 1 Length	8.0 cm
Unit Type of Package 2	S03
Number of Units in Package 2	36
Package 2 Weight	5.629 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
