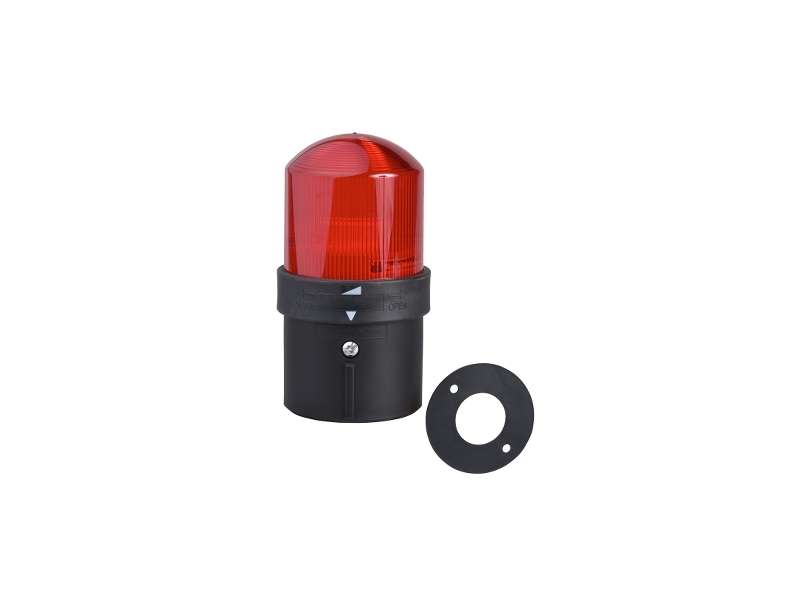

Schneider Electric Svetlosni blok trepćući crveni 48VDC 10W + opcije;XVBL4B4
Harmony XVB, Illuminated beacon, plastic, red, Ø70, steady, incandescent with BA 15d base, 24 V AC...
VAT-exclusive price: 16.562,00 |
VAT-inclusive price: 19.874,40 |
Harmony XVB, Illuminated beacon, plastic, red, Ø70, steady, incandescent with BA 15d base, 24 V AC
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Complete beacon |
| beacon or indicator bank unit type |
Base unit direct or tube fixing Illuminated unit |
| signalling type | Flashing |
| mounting diameter | 70 mm |
| component name | XVBL |
| material |
Glass reinforced polyamide: base unit Polycarbonate: illuminated unit |
| light source | Bulb not included, red |
| bulb type |
Incandescent Incandescent with BA 15d base Protected LED |
| [Us] rated supply voltage |
24 V AC 24...48 V DC |
| maximum power dissipation in W | 7 W |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| flashing frequency | 1 Hz |
| CAD overall width | 70 mm |
| CAD overall height | 139 mm |
| CAD overall depth | 70 mm |
| terminals description ISO n°1 |
(GND)GROUND (COM-1)PW |
| net weight | 0.28 kg |
| pollution degree | 2 |
|---|---|
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 275.0 g |
| Package 1 Height | 8.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 14.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Weight | 5.421 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Complete beacon |
| beacon or indicator bank unit type |
Base unit direct or tube fixing Illuminated unit |
| signalling type | Flashing |
| mounting diameter | 70 mm |
| component name | XVBL |
| material |
Glass reinforced polyamide: base unit Polycarbonate: illuminated unit |
| light source | Bulb not included, red |
| bulb type |
Incandescent Incandescent with BA 15d base Protected LED |
| [Us] rated supply voltage |
24 V AC 24...48 V DC |
| maximum power dissipation in W | 7 W |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| flashing frequency | 1 Hz |
| CAD overall width | 70 mm |
| CAD overall height | 139 mm |
| CAD overall depth | 70 mm |
| terminals description ISO n°1 |
(GND)GROUND (COM-1)PW |
| net weight | 0.28 kg |
| pollution degree | 2 |
|---|---|
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 275.0 g |
| Package 1 Height | 8.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 14.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Weight | 5.421 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
