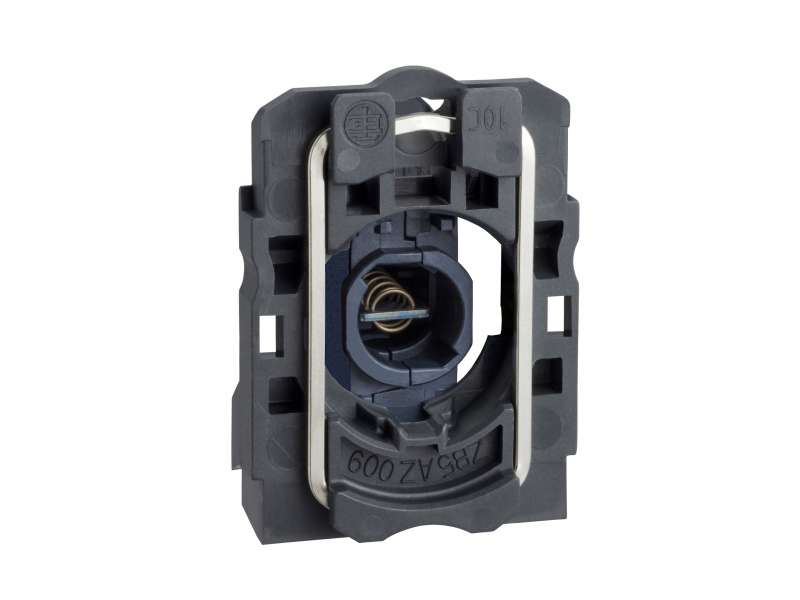

Schneider Electric Svetlosni blok sa montažnim elementom za BA9s sijalicu 250V;ZB5AV6
Light block with body/fixing collar, plastic, for BA9s bulb, <= 250 V...
VAT-exclusive price: 711,00 |
VAT-inclusive price: 853,20 |
Light block with body/fixing collar, plastic, for BA9s bulb, <= 250 V
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Complete body/light block assembly
|
|
| device short name |
ZB5
|
|
| fixing collar material |
Plastic
|
|
| sale per indivisible quantity |
1
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
|
| light source |
Bulb not included
|
|
| bulb base |
BA 9s
|
|
| light block supply |
Direct <2.4 W
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
42 mm
|
|
| CAD overall depth |
32 mm
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| net weight |
0.022 kg
|
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
EN 60947-1 6 kV
|
|
| signalling type |
Steady
|
|
| [Us] rated supply voltage |
<= 250 V
|
|
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
|
| standards |
EN/IEC 60947-5-1
CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 JIS C8201-1 |
|
| product certifications |
UL listed
CSA DNV BV GL LROS (Lloyds register of shipping) RINA |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
20 g
|
|
| Package 1 Height |
3.4 cm
|
|
| Package 1 width |
4.5 cm
|
|
| Package 1 Length |
5.4 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
1.1 kg
|
|
| Package 2 Height |
3.4 cm
|
|
| Package 2 width |
4.5 cm
|
|
| Package 2 Length |
26.5 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
300
|
-
Harmony XB5 ZB5AV6
