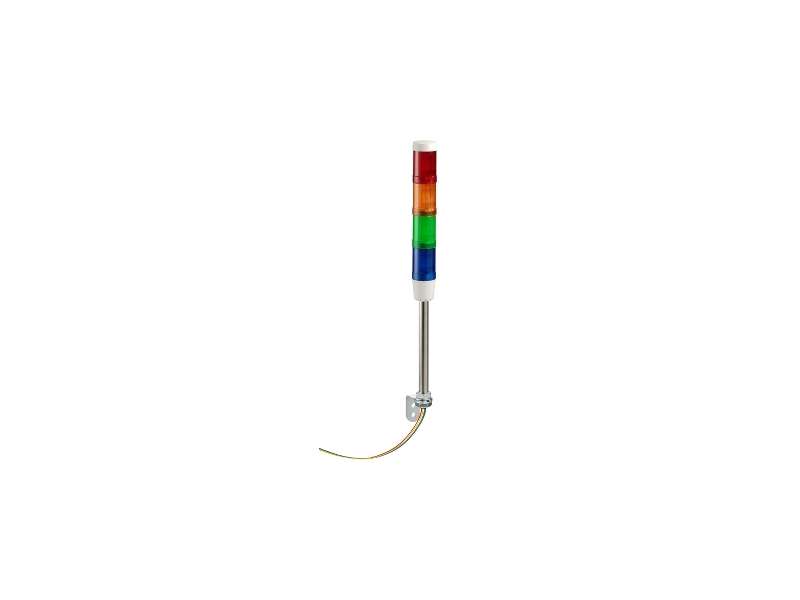

Schneider Electric Svetlosna kolona sa zujalicom + 4 svetleće jedinice - Ø45mm - 24VAC/DC;XVMB2RAGBSSB
Harmony XVM, Modular tower lights, aluminium, support tube with bracket, red/orange/green/blue, Ø45, steady, super bright LED, buzzer, 24 V AC/DC...
VAT-exclusive price: 17.497,00 |
VAT-inclusive price: 20.996,40 |
Harmony XVM, Modular tower lights, aluminium, support tube with bracket, red/orange/green/blue, Ø45, steady, super bright LED, buzzer, 24 V AC/DC
| range of product | Harmony XVM |
|---|---|
| product or component type | Pre-assembled and pre-cabled indicator bank |
| beacon or indicator bank unit type | 4 illuminated units |
| component name | XVM |
| light source |
Green super bright LED with BA 15d base steady signalling Orange super bright LED with BA 15d base steady signalling Red super bright LED with BA 15d base steady signalling Blue super bright LED with BA 15d base steady signalling |
| light block color | Red/orange/green/blue |
| [Us] rated supply voltage | 24 V AC/DC |
| indicator bank base type | Base with integrated buzzer |
| mounting mode | Vertical |
| kit composition |
Cover Plastic fixing plate Base unit Aluminium support tube |
|---|---|
| mounting diameter | 45 mm |
| connections - terminals | Flying leads,clamping capacity: 1 x 0.325 mm² (AWG 22) |
| marking | CE |
| mounting support | Aluminium tube |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| current consumption |
15 mA on base unit 43 mA on steady LED unit |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| fundamental frequency | 4 kHz |
| net weight | 0.501 kg |
| IP degree of protection | IP42 vertical position conforming to IEC 60529 |
|---|---|
| product certifications | CCC |
| standards |
EN/IEC 60947-5-1 EN/IEC 60947-1 |
| ambient air temperature for storage | -25…70 °C |
| ambient air temperature for operation | -10…50 °C |
| overvoltage category |
Class I conforming to IEC 60947-1 Class I conforming to IEC 60947-5-1 Class I conforming to IEC 61140 |
| protective treatment | TC |
| noise level | 0…80 dB at 1 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 670.0 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 8.5 cm |
| Package 1 Length | 67.0 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 1.922 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
