Schneider Electric Svetlosna kolona sa zujalicom + 3 svetleće jedinice Ø 45 mm - 230 V AC;XVMM2RAGSSB
Pre assembled and pre cabled indicator bank, Harmony XVM, with buzzer + 3 illuminated units Ø 45 mm, 230 V AC...
VAT-exclusive price: 18.225,00 |
VAT-inclusive price: 21.870,00 |

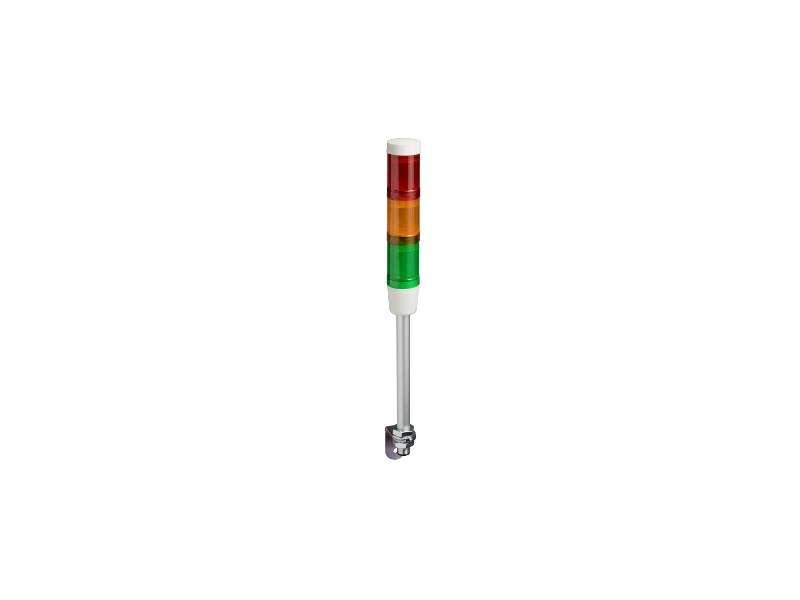

Pre assembled and pre cabled indicator bank, Harmony XVM, with buzzer + 3 illuminated units Ø 45 mm, 230 V AC
| range of product | Harmony XVM |
|---|---|
| product or component type | Pre-assembled and pre-cabled indicator bank |
| beacon or indicator bank unit type | 3 illuminated units |
| component name | XVM |
| light source |
Green super bright LED with BA 15d base steady signalling Orange super bright LED with BA 15d base steady signalling Red super bright LED with BA 15d base steady signalling |
| light block color | Red/orange/green |
| [Us] rated supply voltage | 230 V AC |
| indicator bank base type | Base with integrated buzzer |
| mounting mode | Vertical |
| kit composition |
Base unit Cover Plastic fixing plate Aluminium support tube |
|---|---|
| mounting diameter | 45 mm |
| connections - terminals | Flying leads,clamping capacity: 1 x 0.325 mm² (AWG 22) |
| marking | CE |
| mounting support | Aluminium tube |
| short-circuit protection | 0.2 A |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| current consumption |
18 mA on base unit 15 mA on steady LED unit |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| fundamental frequency | 4 kHz |
| net weight | 0.453 kg |
| IP degree of protection | IP42 vertical position conforming to IEC 60529 |
|---|---|
| product certifications | CCC |
| standards |
EN/IEC 60947-5-1 EN/IEC 60947-1 |
| ambient air temperature for storage | -25…70 °C |
| ambient air temperature for operation | -10…50 °C |
| overvoltage category |
Class I conforming to IEC 60947-1 Class I conforming to IEC 60947-5-1 Class I conforming to IEC 61140 |
| protective treatment | TC |
| noise level | 0…80 dB at 1 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 582.0 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 8.5 cm |
| Package 1 Length | 54.0 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 20 |
| Package 2 Weight | 12.84 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
