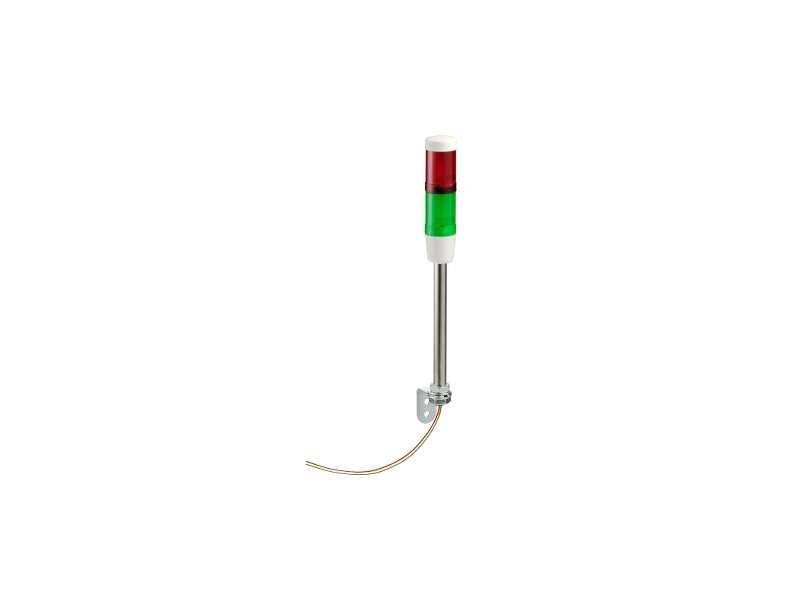

Schneider Electric Svetlosna kolona bez zujalice + 2 svetleće jedinice - Ø 45mm - 24VAC/DC;XVMB2RGSB
Harmony XVM, Modular tower lights, aluminium, support tube with bracket, red/green, Ø45, steady, super bright LED, 24 V AC/DC...
VAT-exclusive price: 7.809,00 |
VAT-inclusive price: 9.370,80 |
Harmony XVM, Modular tower lights, aluminium, support tube with bracket, red/green, Ø45, steady, super bright LED, 24 V AC/DC
| range of product | Harmony XVM |
|---|---|
| product or component type | Pre-assembled and pre-cabled indicator bank |
| beacon or indicator bank unit type | 2 illuminated units |
| component name | XVM |
| light source |
Green super bright LED with BA 15d base steady signalling Red super bright LED with BA 15d base steady signalling |
| light block color | Red/green |
| [Us] rated supply voltage | 24 V AC/DC |
| indicator bank base type | Base without buzzer |
| mounting mode | Vertical |
| kit composition |
Cover Aluminium support tube Plastic fixing plate Base unit |
|---|---|
| mounting diameter | 45 mm |
| connections - terminals | Flying leads,clamping capacity: 1 x 0.325 mm² (AWG 22) |
| marking | CE |
| mounting support | Aluminium tube |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| current consumption | 43 mA on steady LED unit |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| net weight | 0.395 kg |
| IP degree of protection | IP42 vertical position conforming to IEC 60529 |
|---|---|
| product certifications | CCC |
| standards |
EN/IEC 60947-5-1 EN/IEC 60947-1 |
| ambient air temperature for storage | -25…70 °C |
| ambient air temperature for operation | -10…50 °C |
| overvoltage category |
Class I conforming to IEC 60947-1 Class I conforming to IEC 60947-5-1 Class I conforming to IEC 61140 |
| protective treatment | TC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 516.0 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 8.3 cm |
| Package 1 Length | 54.0 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 20 |
| Package 2 Weight | 11.375 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Weight | 54.788 kg |
| Package 3 Height | 80.0 cm |
| Package 3 width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Warranty | 18 months |
|---|
