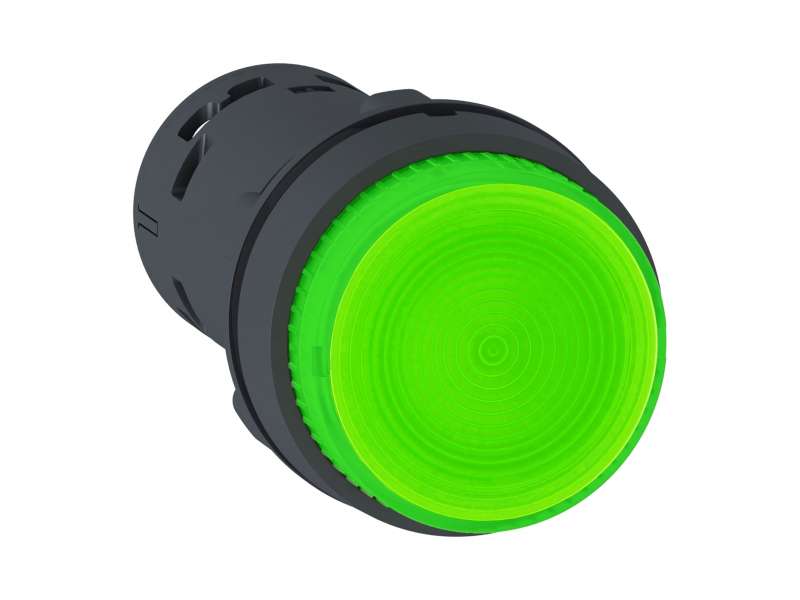

Schneider Electric Svetleći taster - sijalica - sa povratkom -1NO - zelena - 230V; XB7NW3361
ILLUM. P.B - Bulb - Spring Rtn -1NO - Green - 230v...
VAT-exclusive price: 1.006,00 |
VAT-inclusive price: 1.207,20 |
ILLUM. P.B - Bulb - Spring Rtn -1NO - Green - 230v
| range of product |
Harmony XB7
|
|
|---|---|---|
| product or component type |
Illuminated push-button
|
|
| device short name |
XB7
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
10
|
|
| light source |
Incandescent (bulb not included)
|
|
| device presentation |
Monolithic product
|
| height |
29 mm
|
|
|---|---|---|
| width |
29 mm
|
|
| depth |
57.5 mm
|
|
| terminals description ISO n°1 |
(13-14)NO
|
|
| net weight |
0.022 kg
|
|
| device mounting |
Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1
|
|
| fixing center |
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
|
| fixing mode |
Fixing nut beneath head: 2…2.4 N.m
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Green projecting, unmarked
|
|
| contacts type and composition |
1 NO
|
|
| contact operation |
Slow-break
|
|
| positive opening |
Without
|
|
| mechanical durability |
300000 cycles
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| short-circuit protection |
4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
|
|
| [Ui] rated insulation voltage |
250 V (pollution degree 3) conforming to EN/IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
4 kV EN/IEC 60947-1
|
|
| [Ie] rated operational current |
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
|
| electrical durability |
1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
|
| electrical reliability |
Λ <= 10exp(-6) at 17 V and 5 mA conforming to EN/IEC 60947-5-4
|
|
| signalling type |
Steady
|
|
| bulb base |
BA 9s
|
|
| [Us] rated supply voltage |
230 V AC
|
|
| supply voltage limits |
195…264 V AC
|
|
| compatibility code |
XB7
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 61140
|
|
| IP degree of protection |
IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 12 conforming to UL 50 E
NEMA 3 conforming to UL 50 E |
|
| standards |
UL 508
EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-1 |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
| electromagnetic emission |
Class B conforming to EN 55011
|
| Package 1 Weight |
0.022 kg
|
|
|---|---|---|
| Package 1 Height |
0.600 dm
|
|
| Package 1 width |
0.320 dm
|
|
| Package 1 Length |
0.320 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Harmony XB7 XB7NW3361
